Installing the Resource/Crosspoint Module into the Frame

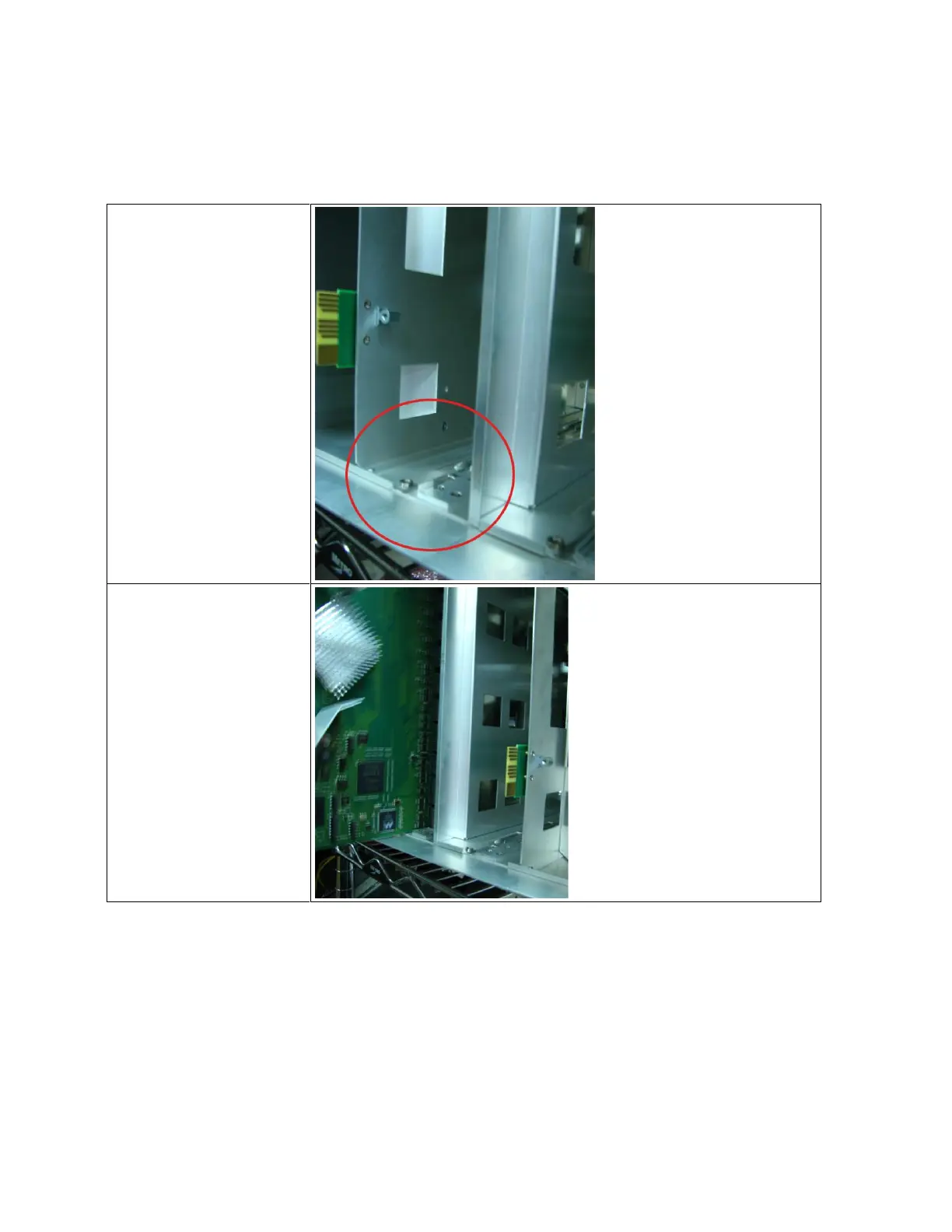

1. When installing the
Crosspoint Module into
the Frame, note the
notch at the bottom of
the frame that the card
should slide into.
2. Position the Crosspoint
Module in the slot and
slide into the frame.
