Installation and Operation Manual Platinum VX Modules
© 2016 Imagine Communications Corp. Proprietary and Confidential. Version 1.2 | Page 63
160 Watt AC-DC Power Supply for 1/2 RU frames (122-100051Q00)

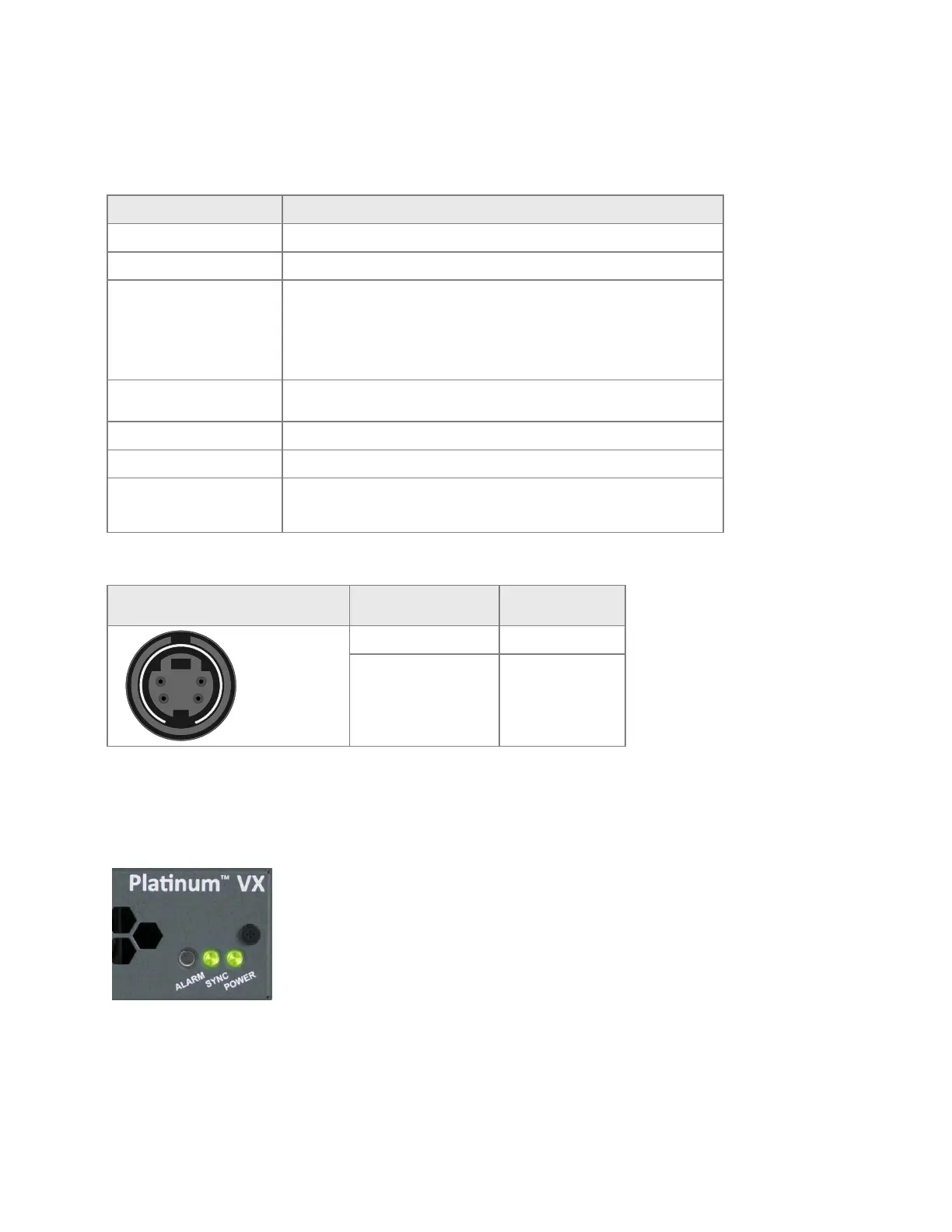

Table 16: 160 Watt Power Supply Input Specification
Item
Specification
Input Voltage Range
85 ~ 264VAC 120 ~ 370VDC
Frequency Range
47 ~ 63Hz
Input Current
 Rated: 9 A rms maximum
 Operating: 8 A rms maximum at 90 VAC with 650 W output
 Operating: 3 A rms maximum at 250 VAC with 650 W
output
AC Current
1.85A / 115VAC
1A / 230VAC
Inrush Current
120A / 230VAC
Efficiency
89%
Power Factor
 PF>0.95 / 230 VAC
 PF>0.98 / 115 VAC at full load
160 Watt Power Supply Pinouts
Pin Number
Output
1
2
4
3
1, 4
12 +V
2, 3
12 -V
Power Supply Status on the Frame
1/2 RU frames have power status indicated by the POWER LED on the right hand side of the frame. If
you don't see a green light, it indicates no power is present or switched on.
Figure 48: Power LED on a 1/2 RU Frame
4/8 RU frames have power status indicated by a red/green light visible through the access door to the
power supplies on the left and right hand sides of the frame. If you see a red light, it indicates the power
supply is not connected or switched on. If you see a green light, it indicates the power supply is
functioning properly.
