Platinum™ VX
Installation and Operation Manual Platinum VX Modules
© 2016 Imagine Communications Corp. Proprietary and Confidential. Version 1.2 | Page 55
Switch Triggering
Signal Standard
SwitchPoint Standard
Signal Line
Detected Reference
1080I/59.54
7
525/59.94I
1080P/59.94
7
525/59.94I
720P/59.94
7
525/59.94I
525/59.94/I
10
525/59.94I
1080I/50
7
625/50/I
1080P/50
7
625/50/I
720P/50
7
625/50/I
625/50/I
6
625/50/I
1080P/59.94
7
1080I/59.94, 1080P/59.94
1080I/59.54
7
1080I/59.94, 1080P/59.94
720P/59.94
7
1080I/59.94, 1080P/59.94
720P/59.94
7
720P/59.94
1080P/50
7
1080I/50, 1080P/50
1080I/50
7
1080I/50, 1080P/50
720P/50
7
1080I/50, 1080P/50
720P/50
7
720P/50
Mid Plane Module
The Mid Plane Module is the central interconnect module in 4 and 8 RU Platinum VX frames.

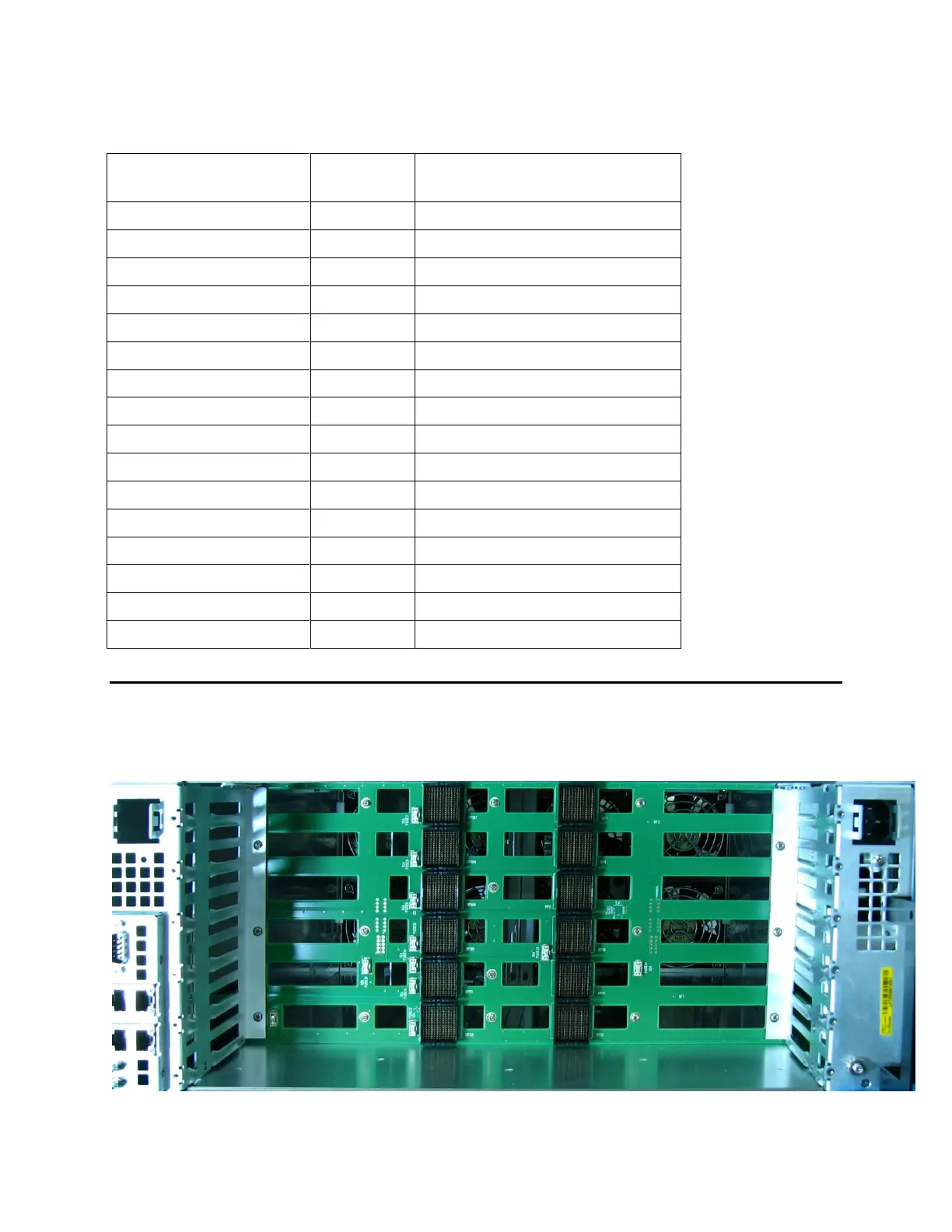

Figure 39: Mid Plane Module in a 4 RU frame
