Back Module Extractor (1261Q)
A back module extractor (1261Q) is shipped with 4 and 8 RU frames. You can find the extractor in the
accessories box. The extractor is used to remove HD-BNC or SFP back modules from 4 or 8 RU frames.

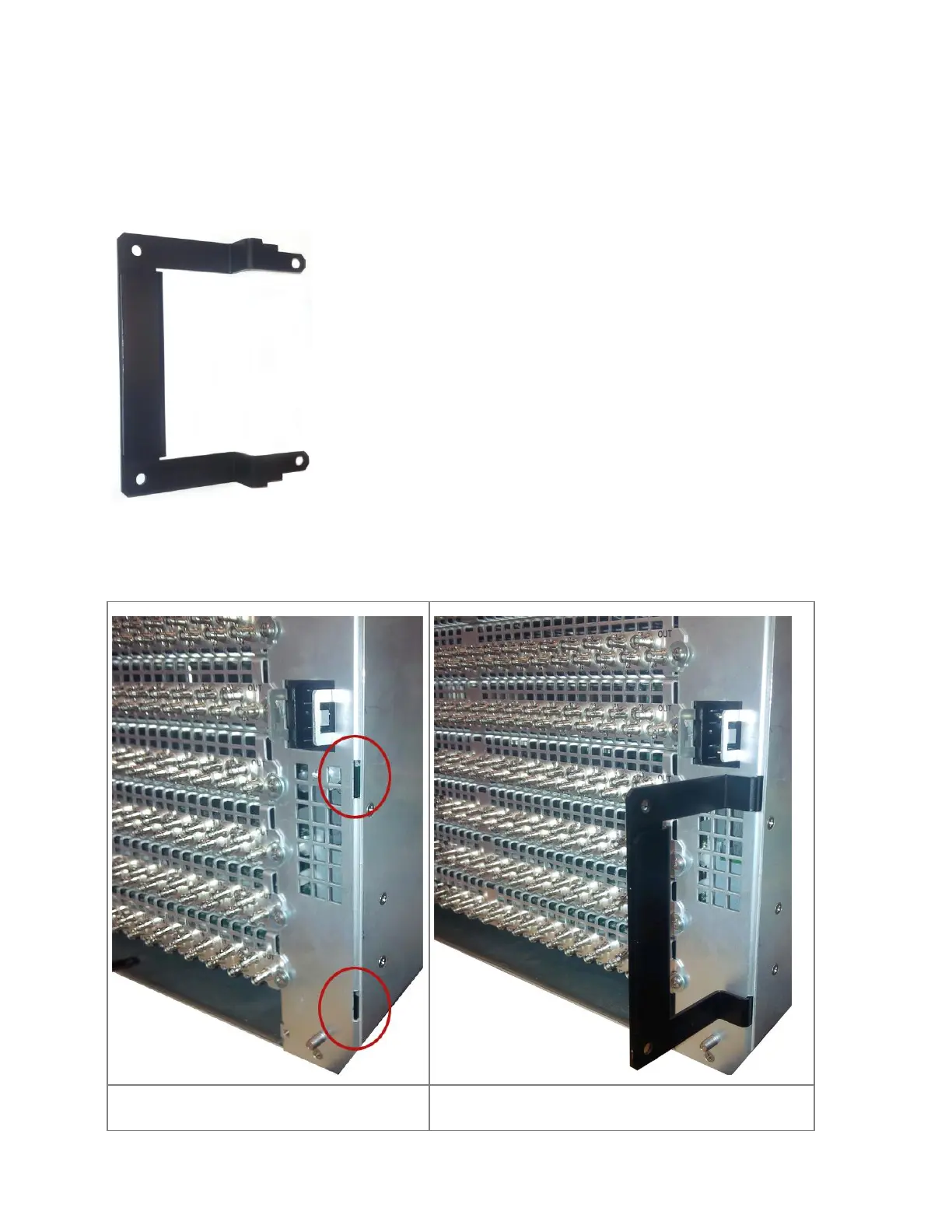

Figure 22: Back Module Extractor
Once removed from the accessories box, there is a slot on the bottom right hand corner of the frame
that the Extractor can be placed into when not in or use or for general convenience.
Figure 23: Slots for Extractor
Figure 24: Extractor inserted into slots
