Frame Specific Details
When you click the Go to Frame button on the main dashboard, the contents of the frame are
displayed.
4/8 RU Frames
In case of 4 and 8 RU frames, individual modules are displayed (See BNC Input/Output Modules (4/8
RU Frames) (on page 99) and SFP Input/Output Modules (4/8 RU Frames) (on page 99)).

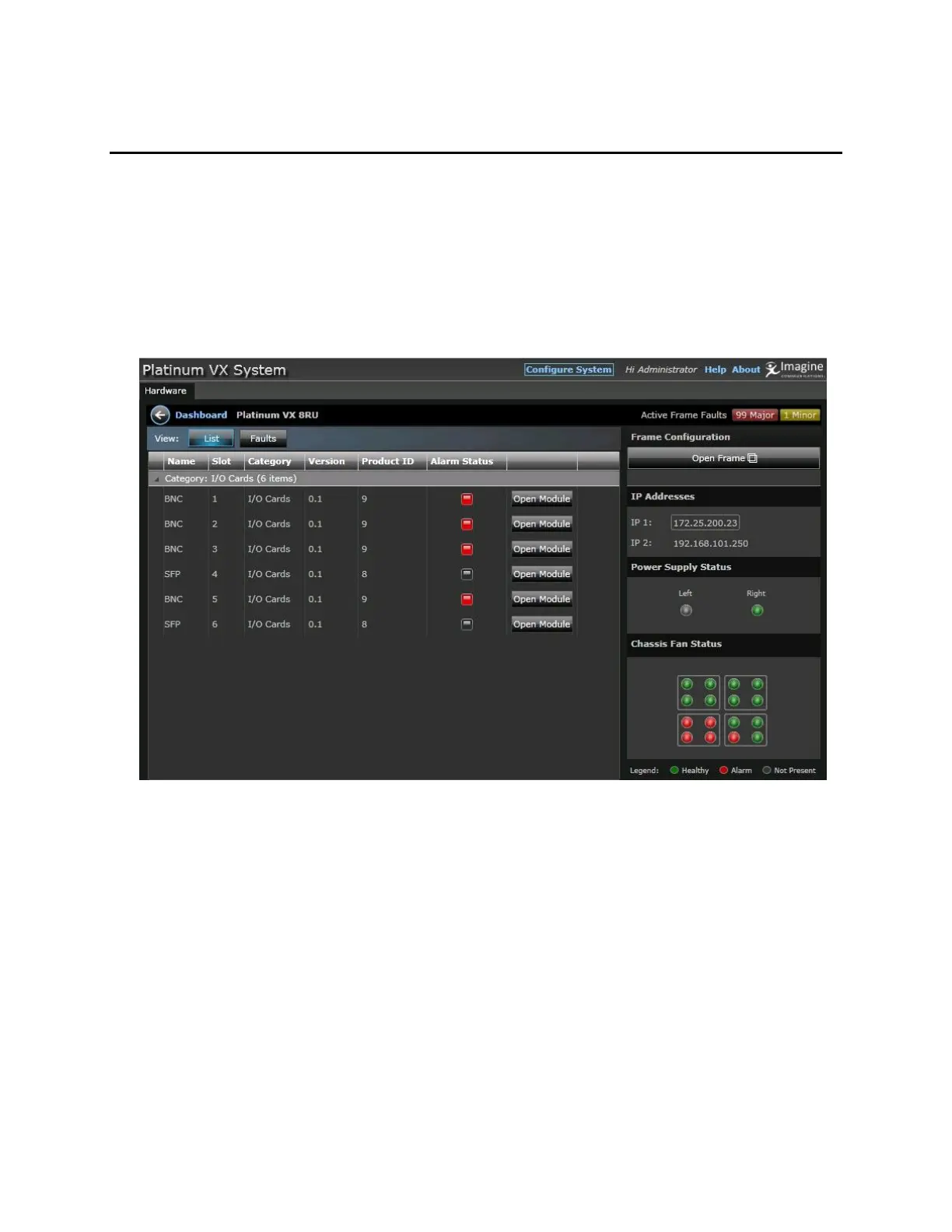

Figure 62: 8 RU Frame Dashboard
