2 RU Frame (PV-48X48-FR-2/PV-72X72-FR-
2/PV-72SFP-FR-2)
The Platinum VX 2 RU frame is available in 3 different configurations:
 Config 1 (PV-48X48-FR-2)- Pre-fitted, offering a total of 48 electrical inputs and 48 outputs.
 Config 2 (PV-72X72-FR-2) - Pre-fitted, offering a total of 72 electrical inputs and 72 outputs.
 Config 3 (PV-72SFP-FR-2) - Pre-fitted, offering 24 SFP inputs and 24 SFP outputs, plus 48 electrical
inputs and 48 outputs.
Note: The 2 RU frame is factory fitted with 48 x 48 HD-BNC connectors, 72 x 72 HD-BNC connectors, or
mixed SFP (24 x 24) and HD-BNC (48 x 48). It is not user configurable. If future expansion may be
required, consider the 4 RU or 8 RU variants.
Table 6: 2 RU Platinum VX Frame Modules and Matrix
Part Number
Frame
Type
Number of HD-BNC
Inputs/Outputs
Number of SFP
Inputs/Outputs
Total Matrix
Size
PV-48X48-FR-2
2 RU
Config 1
48x48
See BNC Module Input
Parameters (on page 105) and
BNC Module Output
Parameters (on page 106).
-
48x48
PV-72X72-FR-2
2 RU
Config 2
72x72
See BNC Module Input
Parameters (on page 105) and
BNC Module Output
Parameters (on page 106).
-
72x72
PV-72SFP-FR-2
2 RU
Config 3
48x48
See PV-72SFP Modules (2 RU
SFP frame) (on page 101)
24x24
72x72

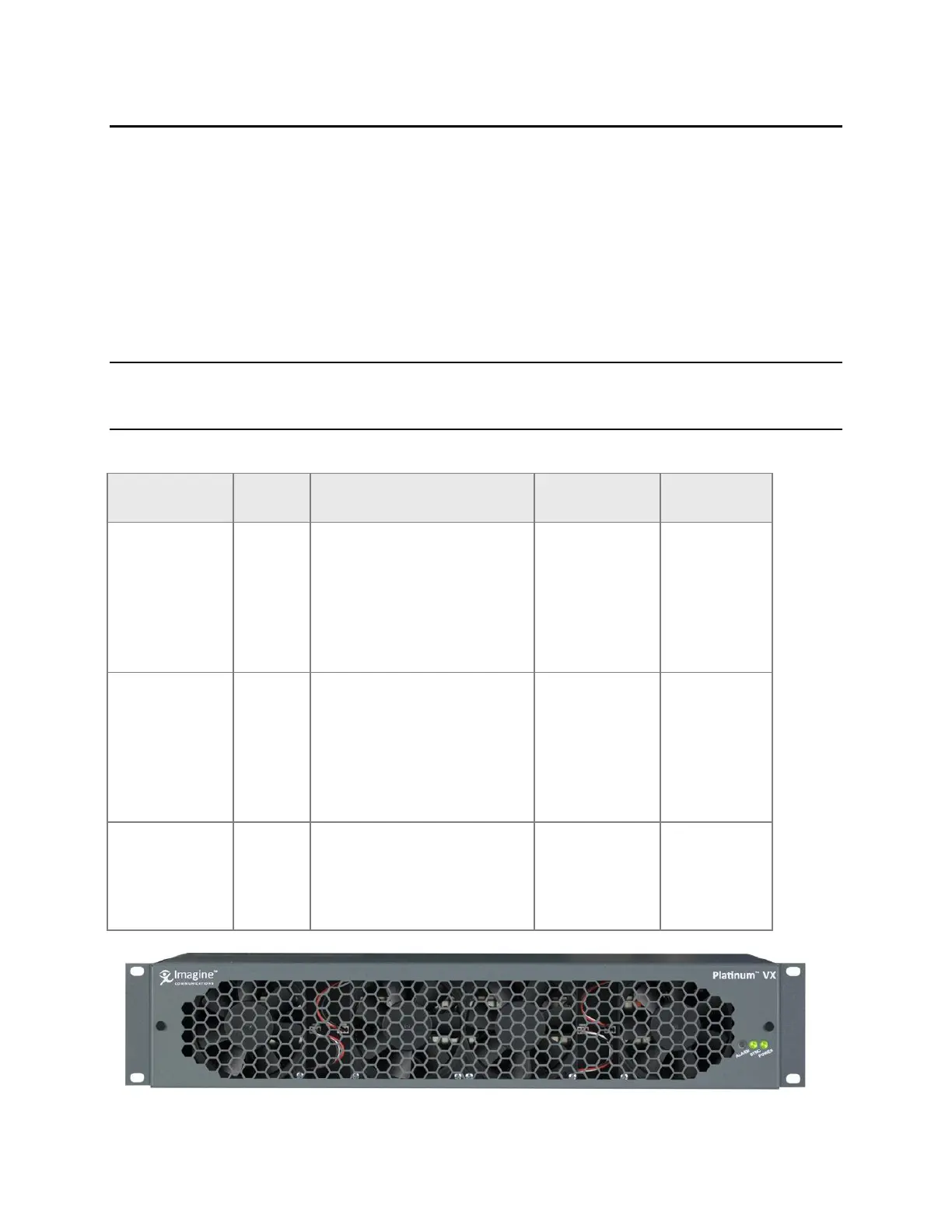

Figure 8: 2 RU Platinum VX - Front View
