PV-72SFP Modules (2 RU SFP frame)

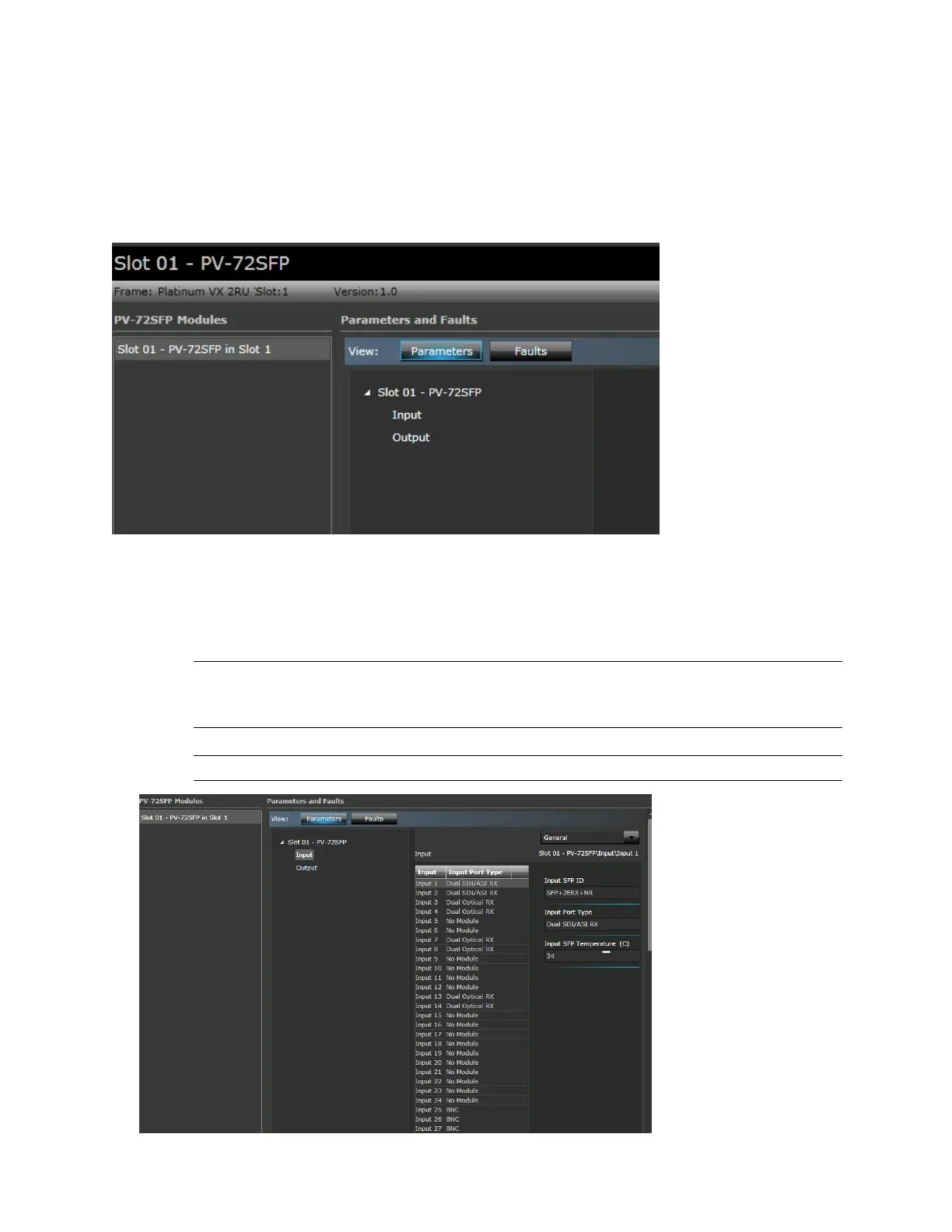

The 2 RU SFP Frame (PV-72SFP-FR-2) doesn't have any individual modules. A single main board PV-
72SFP with 72 inputs and outputs is displayed when you click the Go to Frame button on the main
dashboard.
Parameters for inputs/outputs are displayed to the right, categorized under Input and Output menus.
INPUTS
Under Input, the Input Port Type column displays information for:
 SFPs in input slots 1-24
Note: If there is no SFP plugged in, Input Port Type will display No Module.
For SFP parameters - displayed depending on the type of SFP inserted - see SFP Module
Input Parameters (on page 107). Also see Supported SFP Specifications (on page 71).
 BNC in input slots 25-72
Note: For BNC parameters, see BNC Module Input Parameters (on page 105).
