OUTPUTS

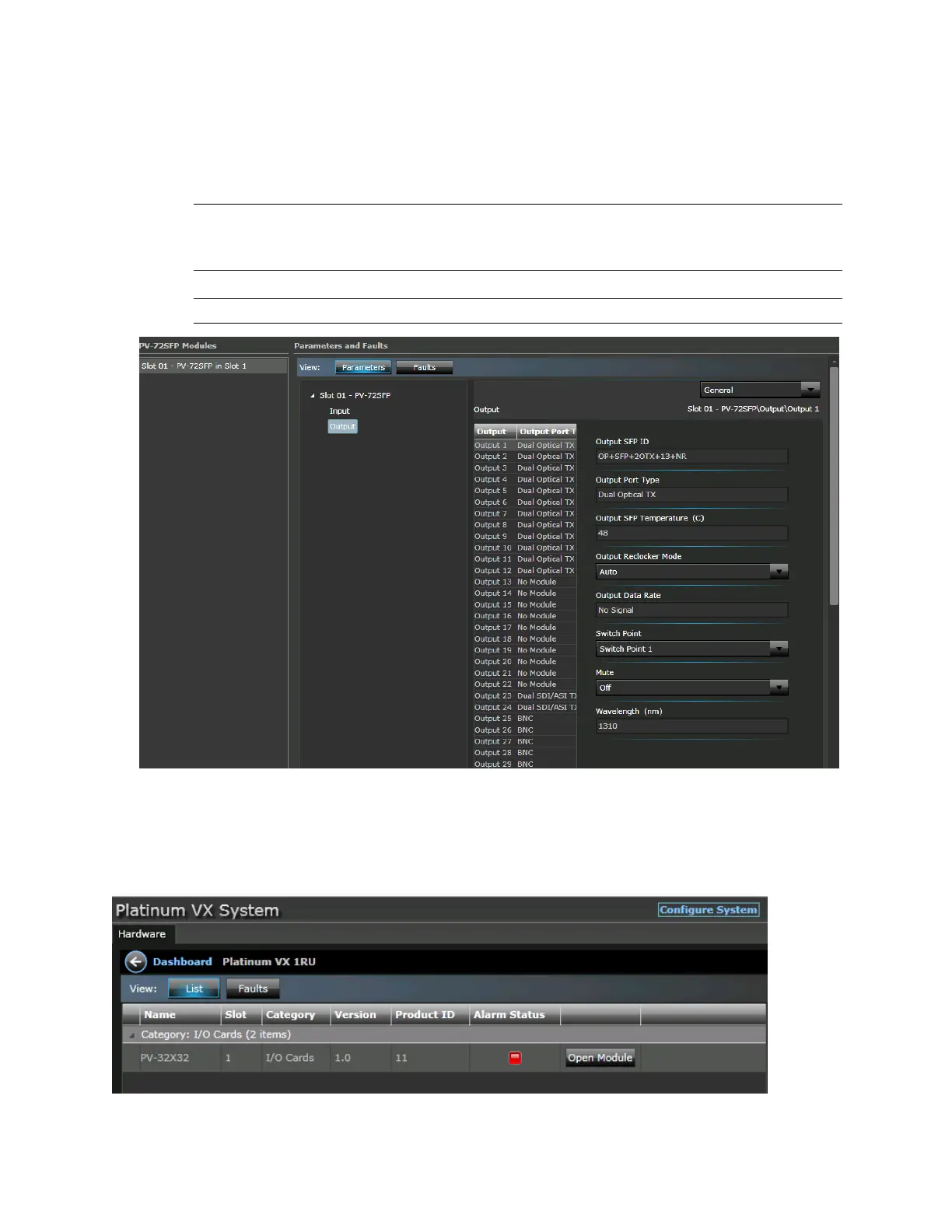

Under Outputs, the Output Port Type column displays information for:
SFPs in output slots 1-24
Note: For SFP parameters - displayed depending on the type of SFP inserted - see SFP
Module Output Parameters (on page 108)). Also see Supported SFP Specifications (on page
71).
BNC in output slots 25-72
Note: For BNC parameters, see BNC Module Output Parameters (on page 106).
PV-32x32 Modules (1 RU and 1 RU CQS frames)
In a 1 RU (PV-16X16-FR-1), a single PV-32x32 component is displayed when you click the Go to Frame
button on the main dashboard.
