Platinum™ VX
Installation and Operation Manual Navigation
© 2016 Imagine Communications Corp. Proprietary and Confidential. Version 1.2 | Page 103

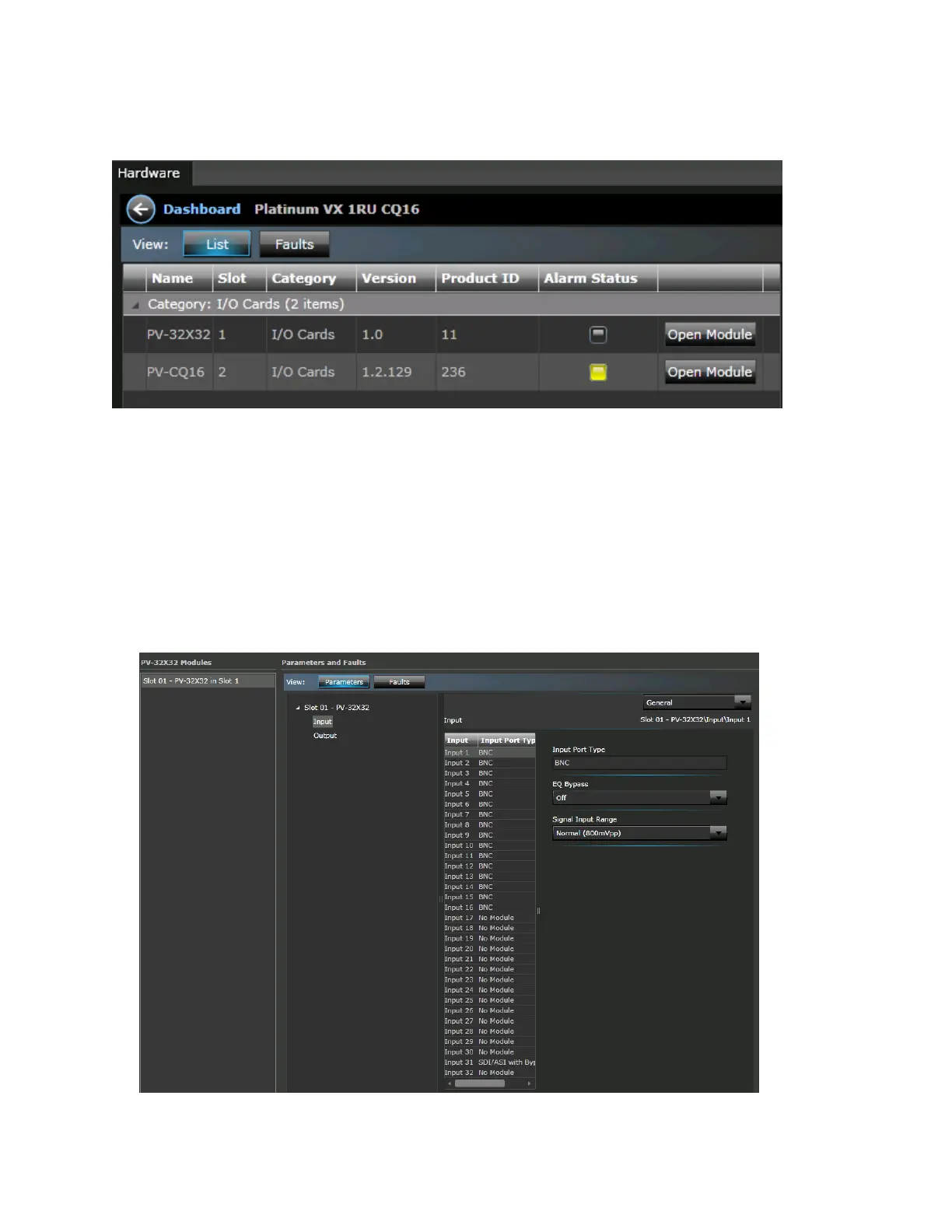

A 1 RU CQS frame (PV-CQ16-FR-1) displays a CQS Module (PV-CQ16) in addition.
Both the 1 RU and 1 RU CQS frames offer up to 32 inputs and outputs, and parameters for these are
displayed to the right, categorized under Input and Output menus.
INPUTS
Under Input, the Input Port Type column displays information for:
BNCs in input slots 1-16
(For BNC parameters, see BNC Module Input Parameters (on page 105))
SFPs (if plugged in) in input slots 17-32
(SFP Parameters are displayed depending on the type of SFP inserted. See Supported SFP
Specifications (on page 71).)
