The frame has either 48 or 72 inputs and outputs and parameters for these are displayed to the right,
categorized under Input and Output menus.

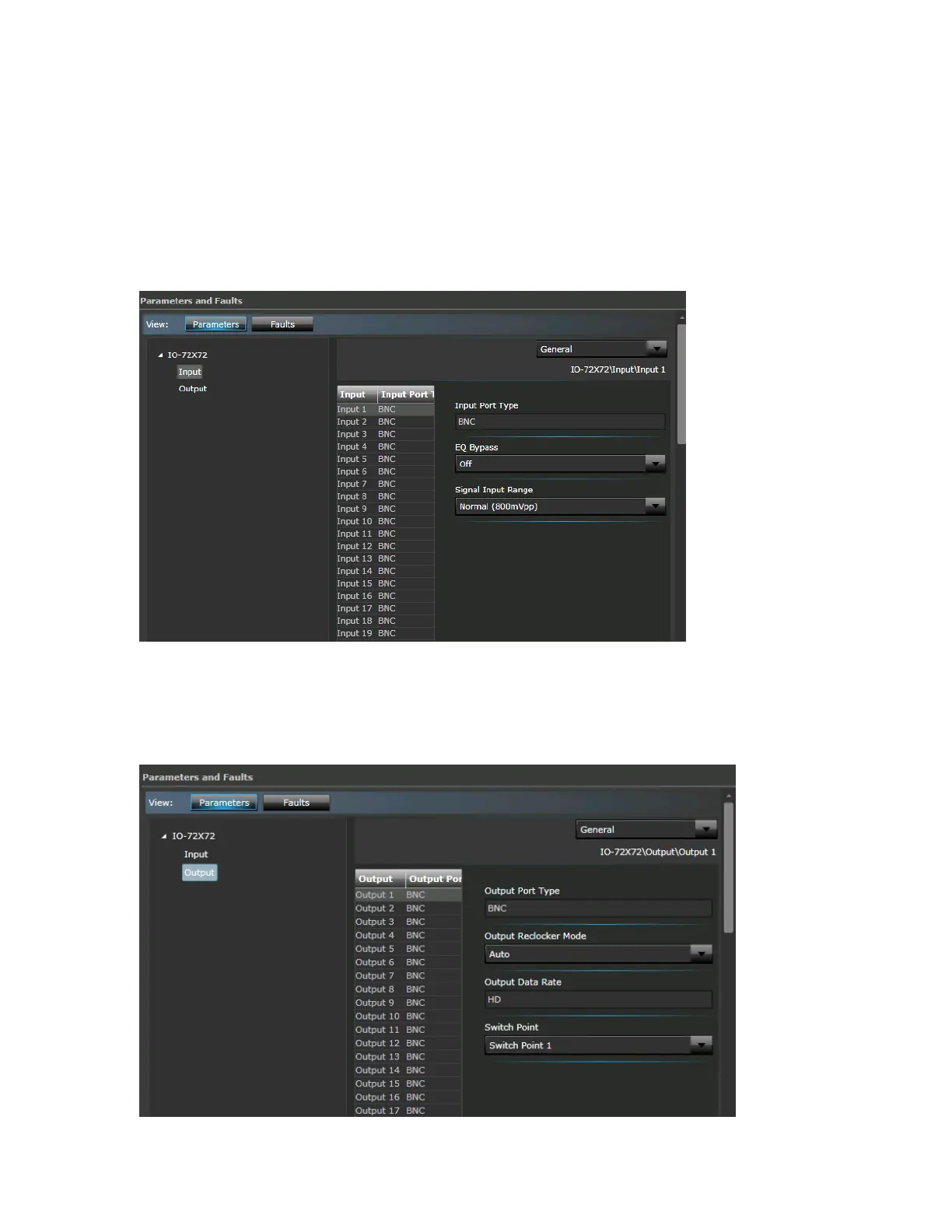

INPUTS
Under Inputs, the Input Port Type column displays information for:
 BNC in input slots 1-48 or 1-72
(For BNC parameters, see BNC Module Input Parameters (on page 105))
OUTPUTS
Under Outputs, the Output Port Type column displays information for:
 BNC in output slots 1-48 or 1-72
(For BNC parameters, see BNC Module Output Parameters (on page 106))
