Platinum™ VX
Installation and Operation Manual Platinum VX Modules
© 2016 Imagine Communications Corp. Proprietary and Confidential. Version 1.2 | Page 56

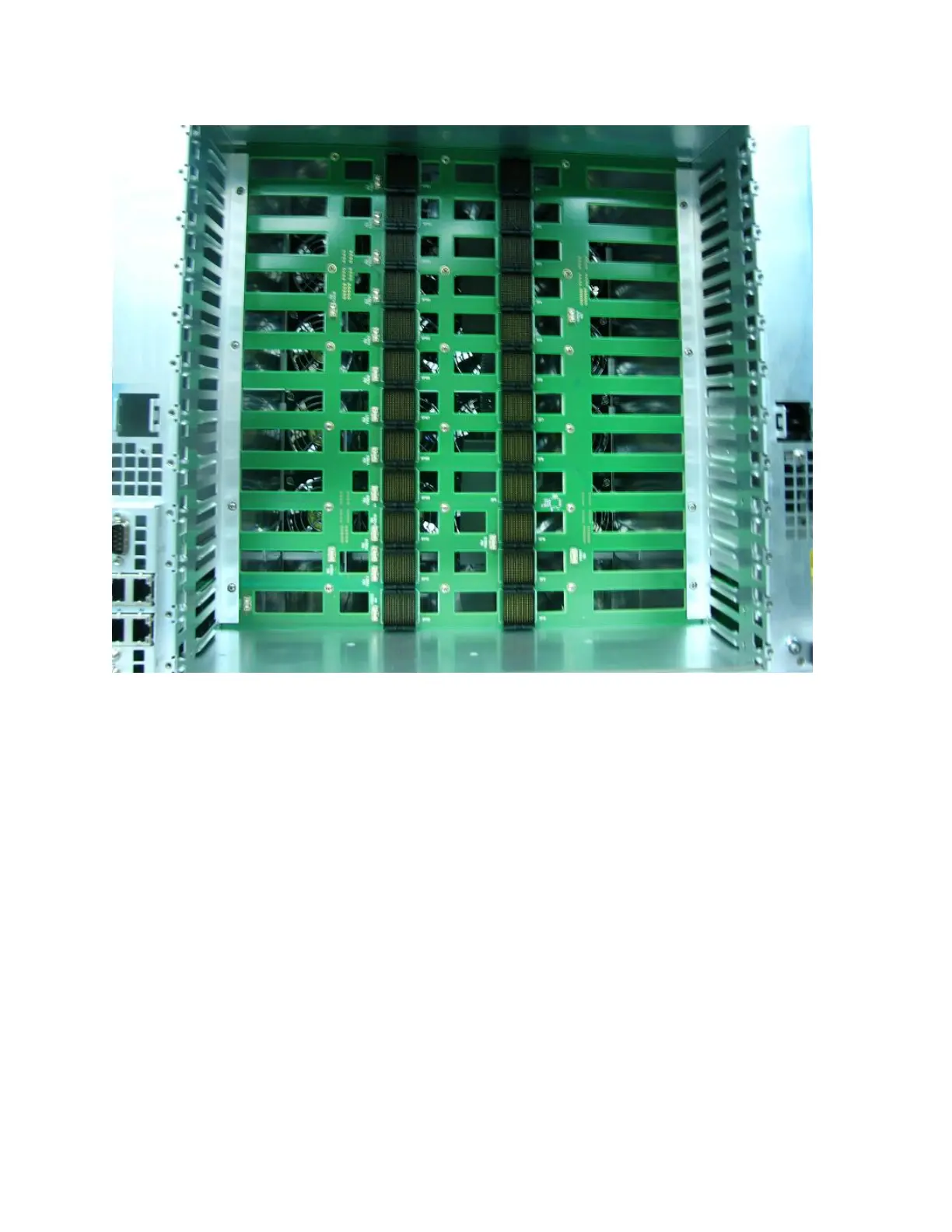

Figure 40: Mid Plane Module in an 8 RU Frame
The Mid Plane Module has sockets on both sides for Crosspoint Modules and Input/Output Modules
that plug into it.
Plugs on the edge of the Crosspoint/Resource modules connect to the sockets on the Mid Plane.
Crosspoint/Resource modules (in 4 and 8 RU frames) go into the frame vertically, from the front.
