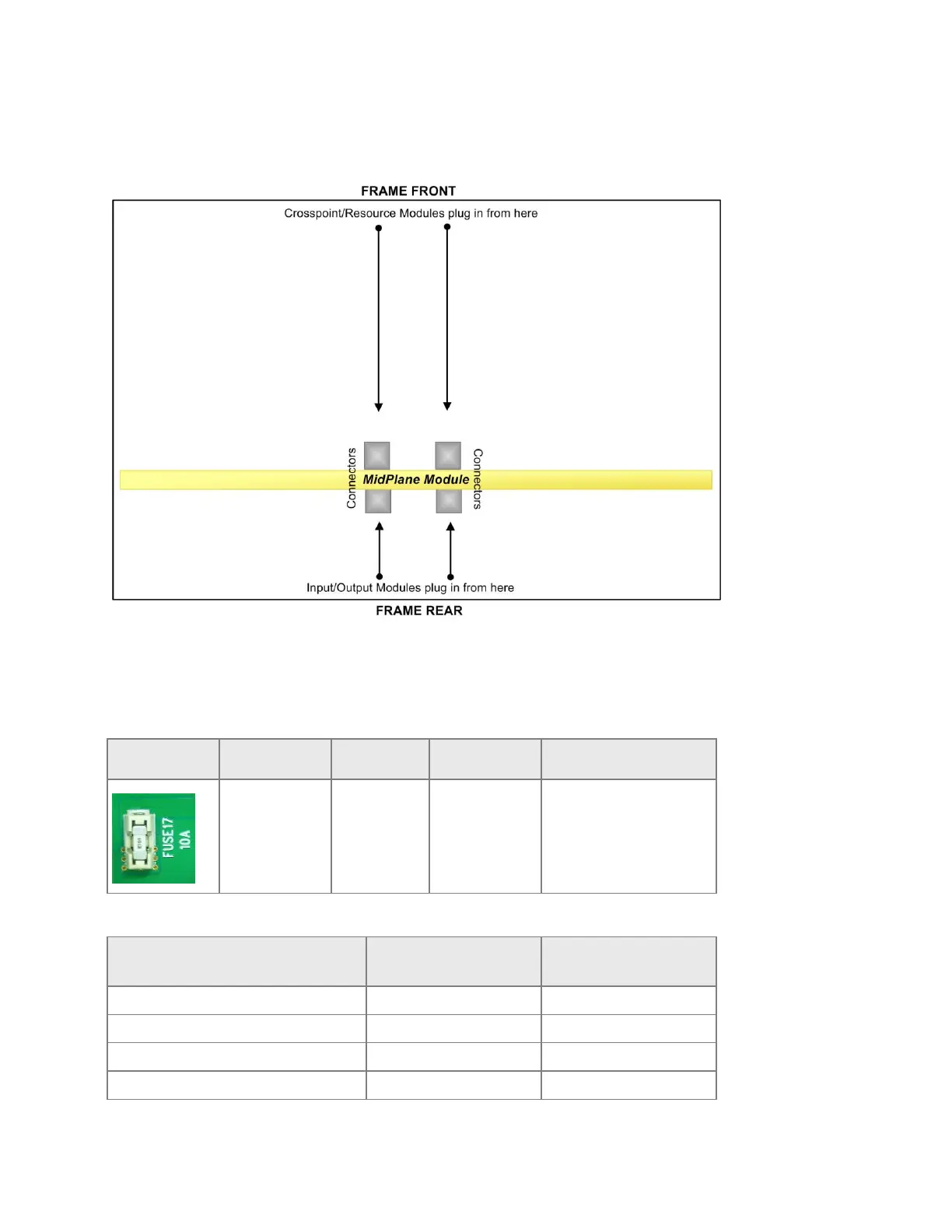

Plugs on the edge of the Input/Output modules connect to sockets on the Mid Plane. Input/Output
modules go into the frame horizontally, from the rear.
The Mid Plane Module takes the input signal and routes it to the Crosspoint. After processing completes,
it re-routes the signals back to the outputs. The Mid Plane is a passive module with no active
components, however there are fuses on it. These fuses are to prevent damage to module connectors.
Table 13: Fuses on the Mid Plane Module
Fuse Type
Fuse Rating
Present on
Part Number
Fastblow
10 Amps
All Slots
127-100013Q00
Table 14: Mid Plane Module Slots
Slot Type
Number of Slots in 4
RU
Number of Slots in 8
RU
Input Module Slots
6
12
Crosspoint/Resource Module Slots
2
2
Sync Distribution Module Slots
1
1
Fan Control Module
2
4
