29. Technical changes
• TA – 21 – 24
Reason for change:
There were assembly problems (leakage) with the cutting air connection on the air motor side
Affected components:
030 03 004 Cap
030 01 016 Quick-coupling piece
030 03 051 O-ring 15x1
Change:

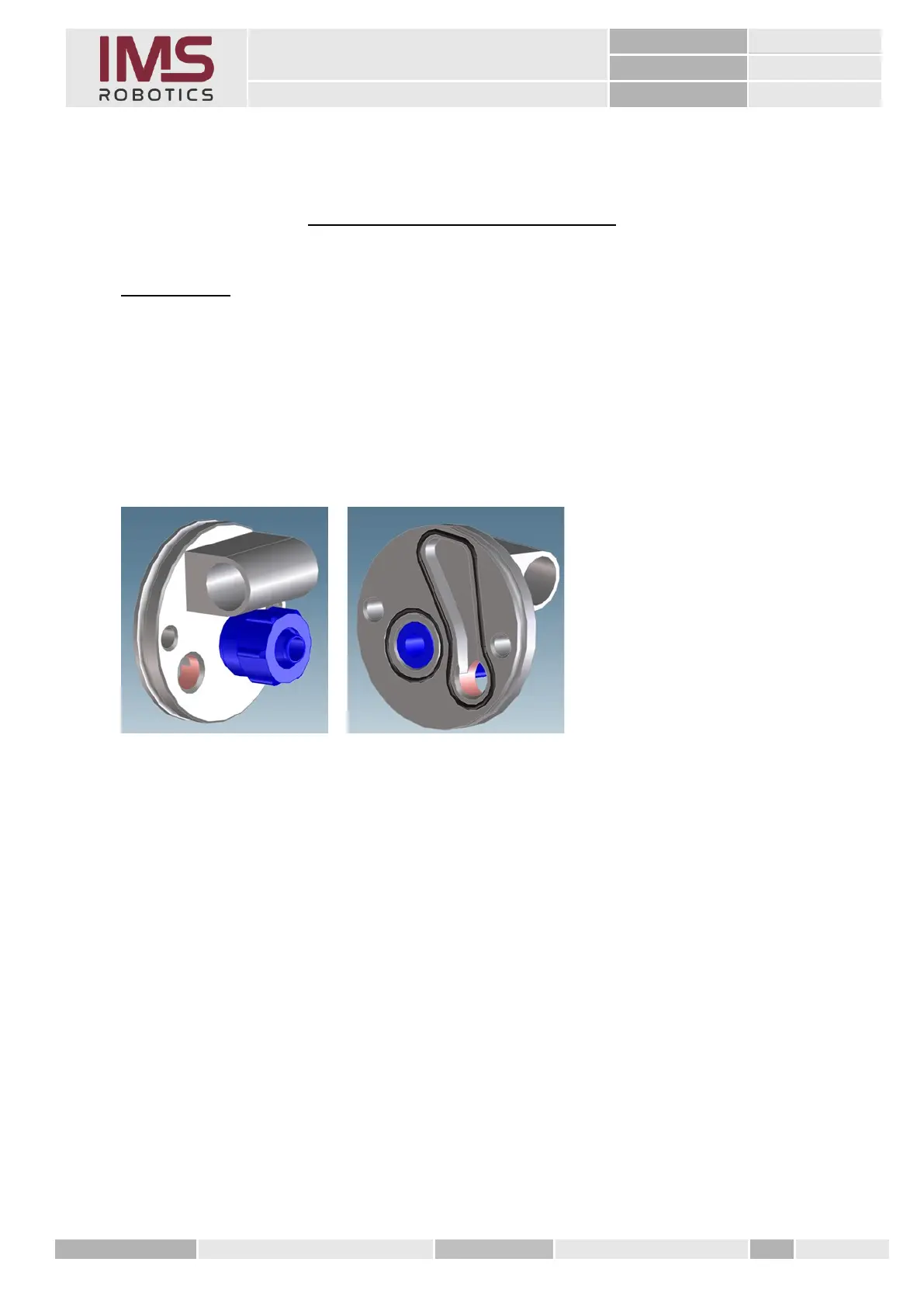

A new cutting air connection (030 08 102) is used, which has a smaller thread (M10x1) and a collar.
This is the reason for a new cap (030 08 103). The O-ring grooves and the inner contour have also been
modified to make assembly easy.
The O-ring that seals the cutting air must be replaced for this purpose.
The connection is glued with yellow!
Article numbers of the new components:
030 08 103 Cap
030 08 102 Machined quick-fit connector 8-M10x1
021 01 068 O-ring 13x1
