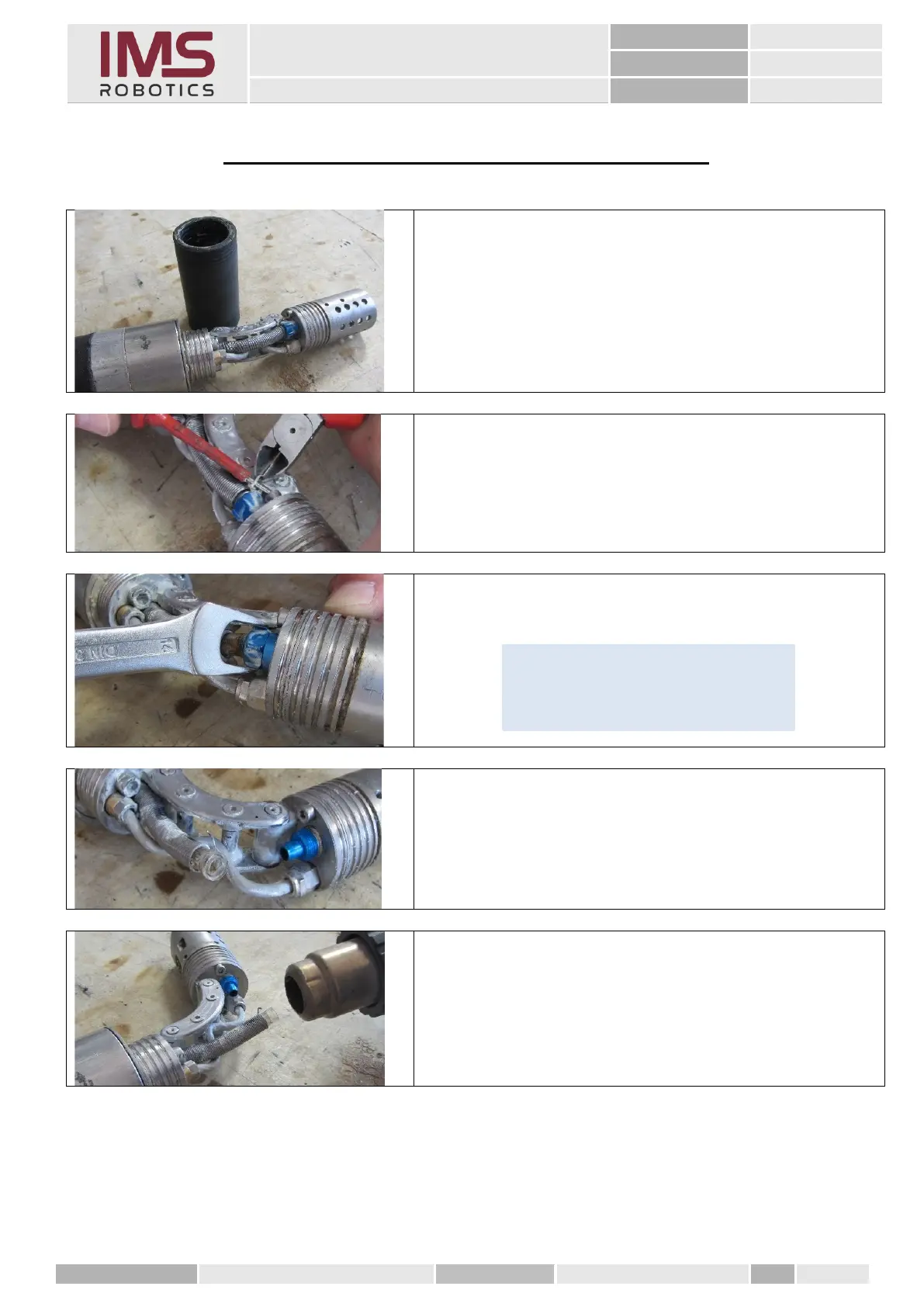

14. Removing the front rotary unit
Remove the lifting air bag according to instructions
"Removing the lifting air bag"
1. Loosen the protective spring for the cutter air hose
from the bracket.
2. Mount the quick-release coupling of the cutter air
hose.
Tip
Use specially polished
wrench.
3. Remove the cutter air hose from the quick-release
coupling.
4. Heat the PU hose with a hot air gun until the
deformation is reduced by the quick release
coupling.
Remove the protective spring.
