IMS ROBOTICS MICRO S - Page 62

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
62 of 113

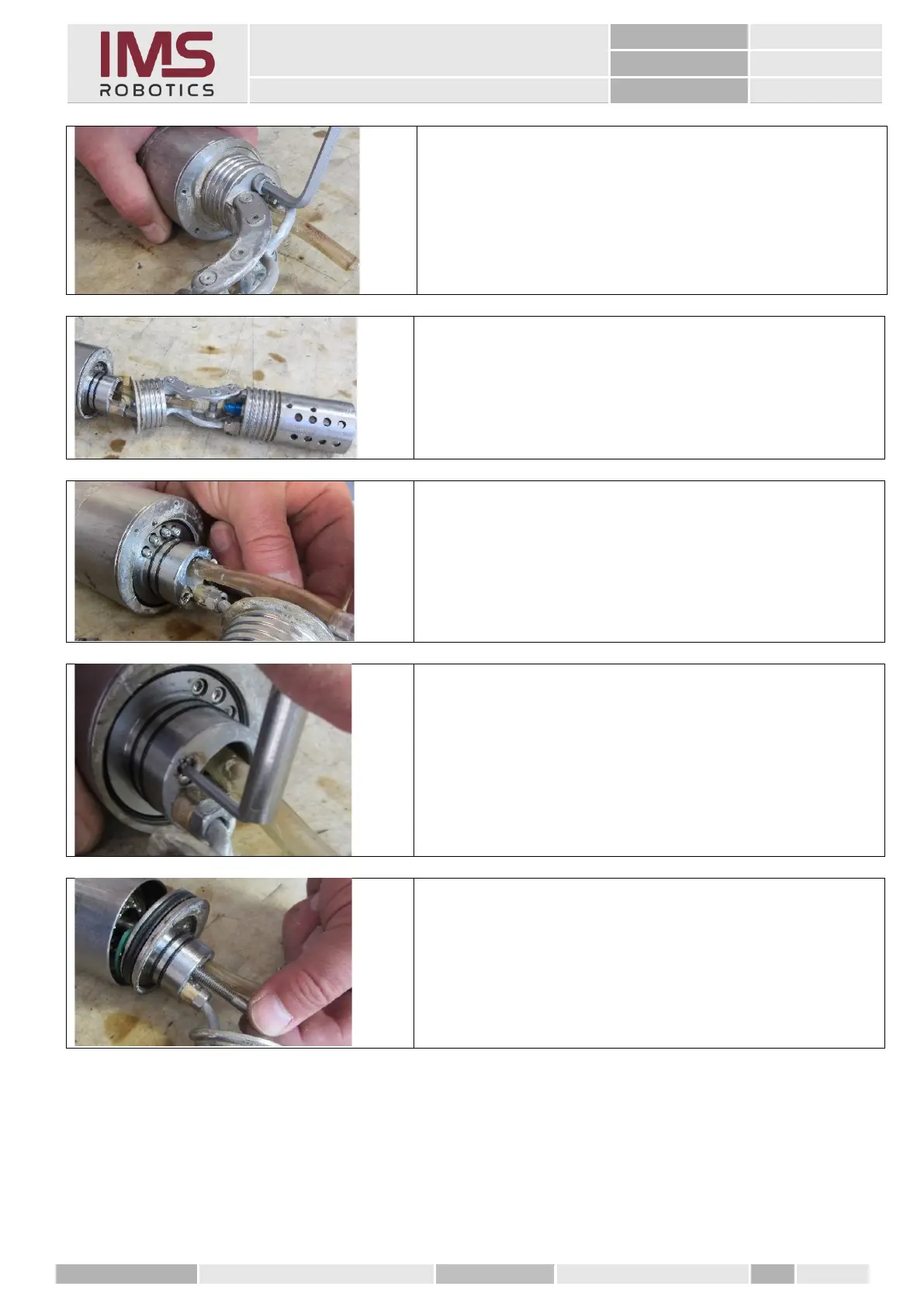

1. Loosen the 2 M6x10 cylinder screws on the adapter
brackets.
2. Remove the adapter brackets from the front rotary
unit
3. To remove the front rotary unit, the six cylinder
screws have to be loosened.
2 of them are located in the M6 threaded holes of
the adapter bracket.
4. After loosening all the screws, an M6 threaded screw
is screwed into one of the two M6 threads to help
with the disassembly and the front rotary unit is
pulled out of the housing of the rear rotary unit.
