IMS ROBOTICS MICRO S - Mounting the rear radial air bag

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
38 of 113

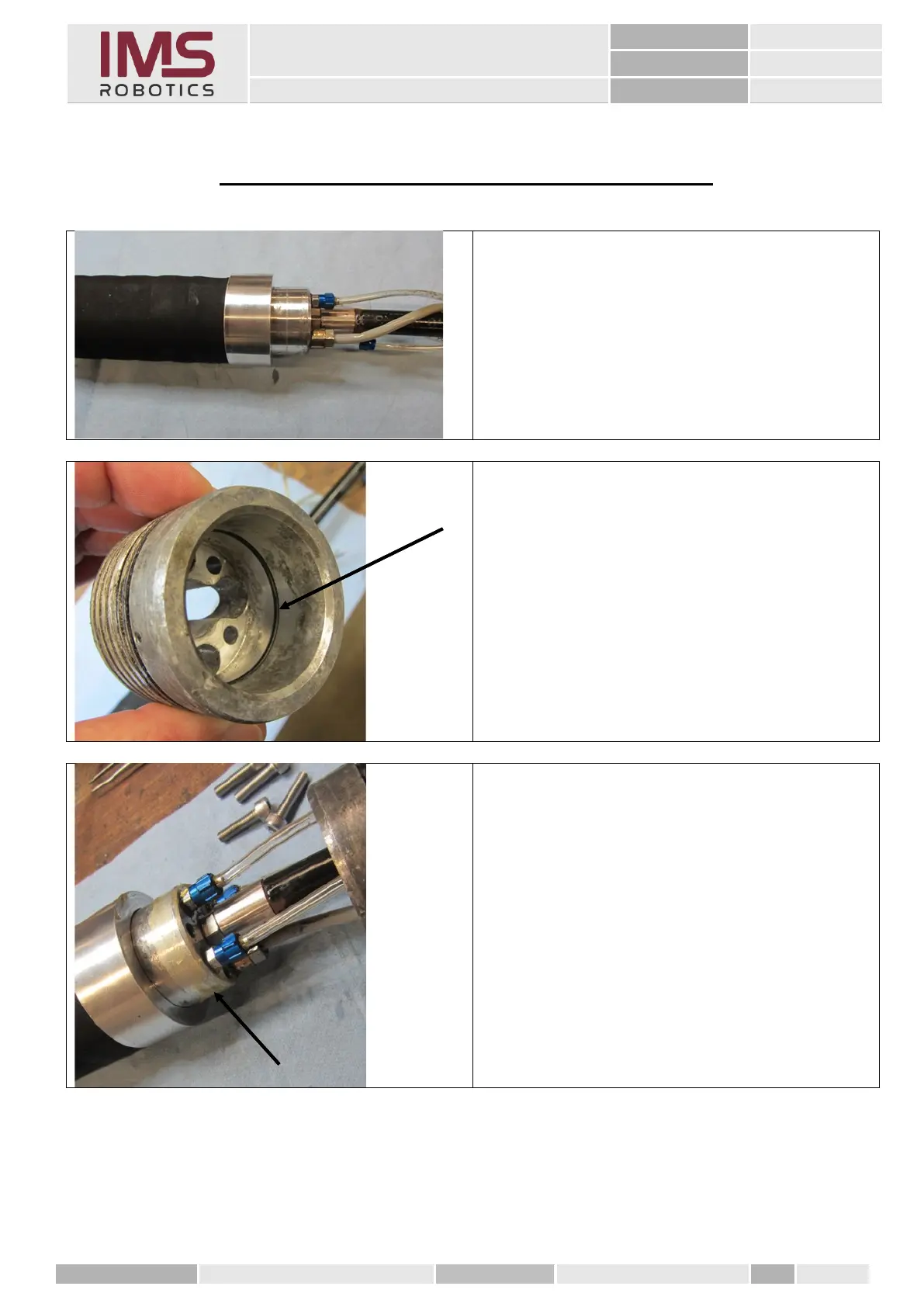

9. Mounting the rear radial air bag
The axial movement mechanism must be mounted
before mounting the rear radial air bag.
Furthermore, all reused parts must be thoroughly
cleaned and degreased, the O-rings must be checked for
wear or damage. Also the compressed air hoses and
quick-fit connectors must be checked.
Replace all damaged parts.
1. Check O-ring of distributor centre 2 (011 14
085) and replace if necessary
2. Guide the distributor over the hoses and the
cable up to the distributor centre 1
3. Apply grease to the sealing surface of the
distributor centre 1
