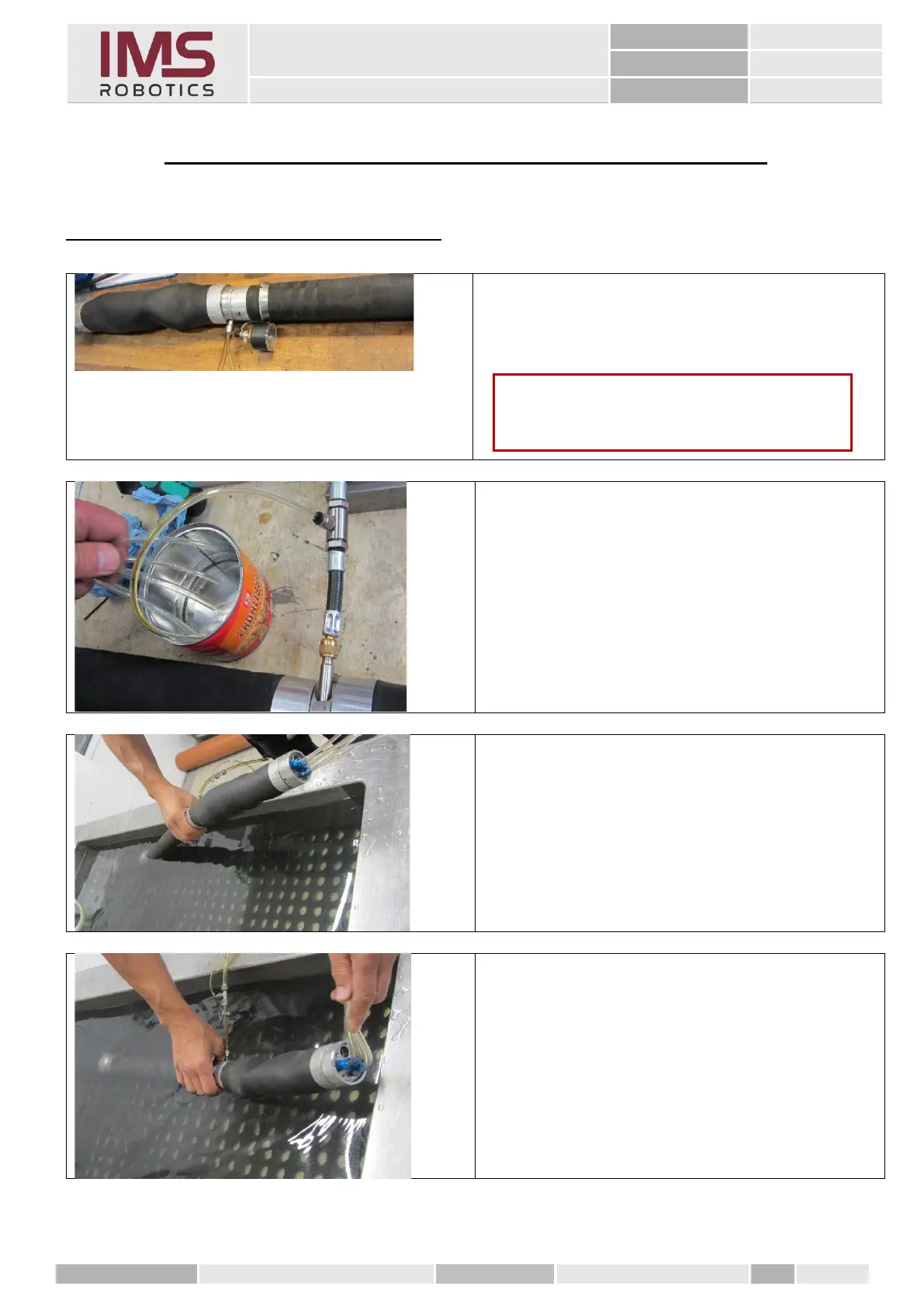

24. Final inspection/testing of all functions
24.1 Check nitrogen system for leaks
1. Fill the nitrogen system with 1.5 bar
pressure via the nitrogen filling valve.
If nitrogen escapes, carry out the following
operations in sequence.
1. Keep all compressed air hoses from the test
adapter and the one from the nitrogen valve
under water. If a hose releases bubbles, note
the following table
"Error events and their causes".
If not, continue with step 2.
2. Keep the camera and the turning gear under
water.
3. Hold the nitrogen filling valve under water.
4. Hold the cable plug in the rear 2 distributor
under water.
Caution
Pressure must hold for at least one hour
without loss.
