IMS ROBOTICS MICRO S - Removing the rear radial air bag

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
32 of 113

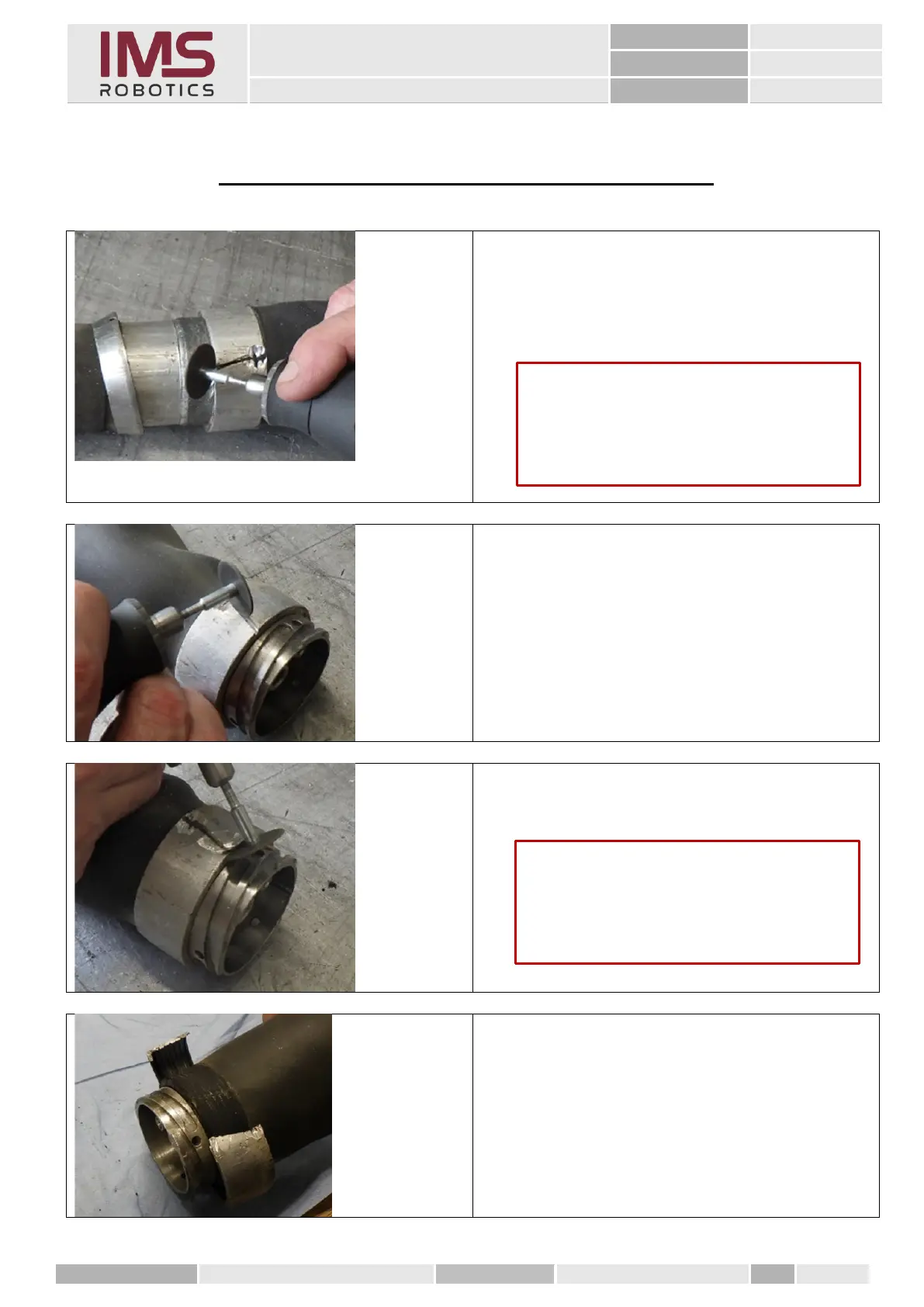

8. Removing the rear radial air bag
1. Cut the crimp ferrule at the centre of the
distributor
o first cut longitudinally
o then transversely to separate the edge
of the crimp ferrule
2. Cut the crimp ferrule at the rear of the
distributor
o first cut longitudinally
o then transversely to separate the edge of
the crimp ferrule
3. Lift and remove the crimp ferrules
Caution
When making a longitudinal cut, take care
not to damage the air bag.
The distributor may not be damaged during
cross-cutting.
Caution
When making a longitudinal cut, take care
not to damage the air bag.
The distributor may not be damaged during
cross-cutting.
