IMS ROBOTICS MICRO S - Page 31

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
31 of 113

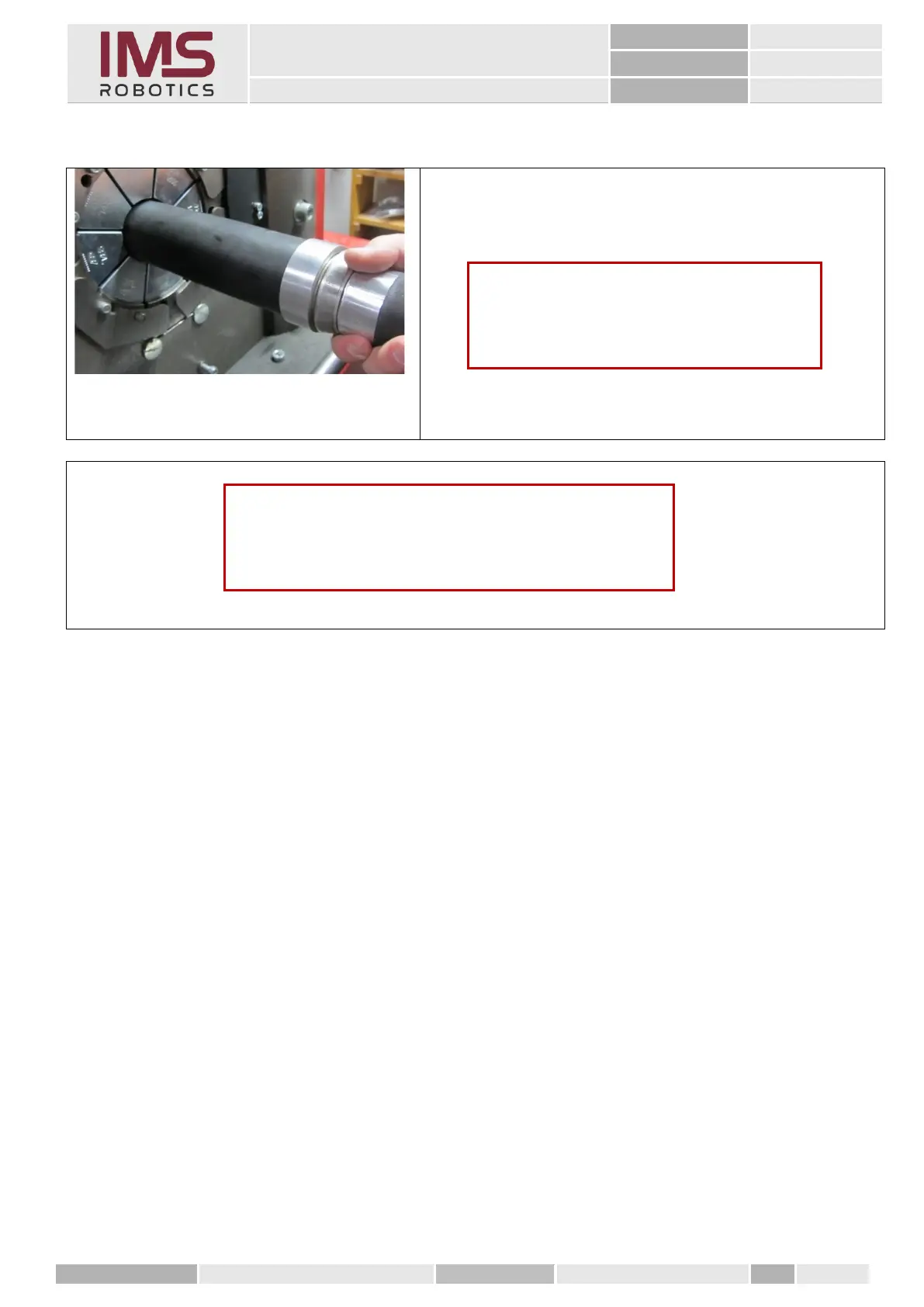

9. Crimp the rear crimp ferrule
(60.5 mm crimping dimension/ 57 mm crimping
jaws).
Achtung
Das Spiel von 2mm zwischen Presshülse und Radialblase
muss an jeder Presshülse egal ob vordere oder hintere
Radialblase vorhanden sein.
Caution
The clearance of 2mm between the crimp ferrule and the
radial air bag must be provided on every crimp ferrule,
regardless of whether it is the front or rear radial air bag.
Caution
When crimping the rear crimp sleeve, insert it
up to the contour piece.
Read the "Crimp ferrule" repair information.
