IMS ROBOTICS MICRO S - Removing the axial movement mechanism

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
47 of 113

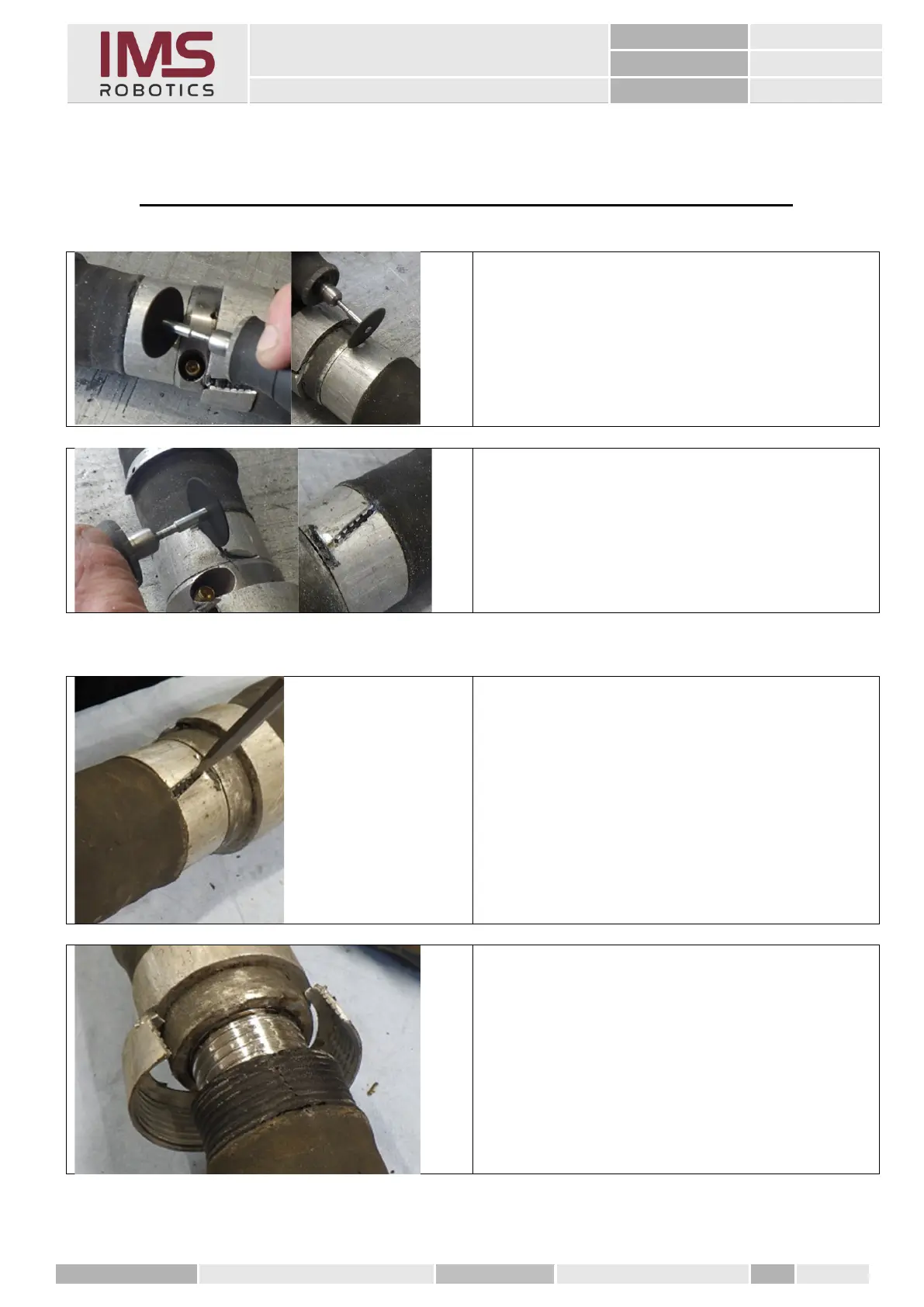

10. Removing the axial movement mechanism
1. Carefully cut open both the crimp
ferrules using Dremel
• First cut transversely to separate the
edge of the crimp ferrule
• Then cut longitudinally to separate the crimp
ferrule completely
2. Break open the crimp ferrules using a
screwdriver
3. and bend them up
