IMS ROBOTICS MICRO S - Removing the front radial air bag

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
26 of 113

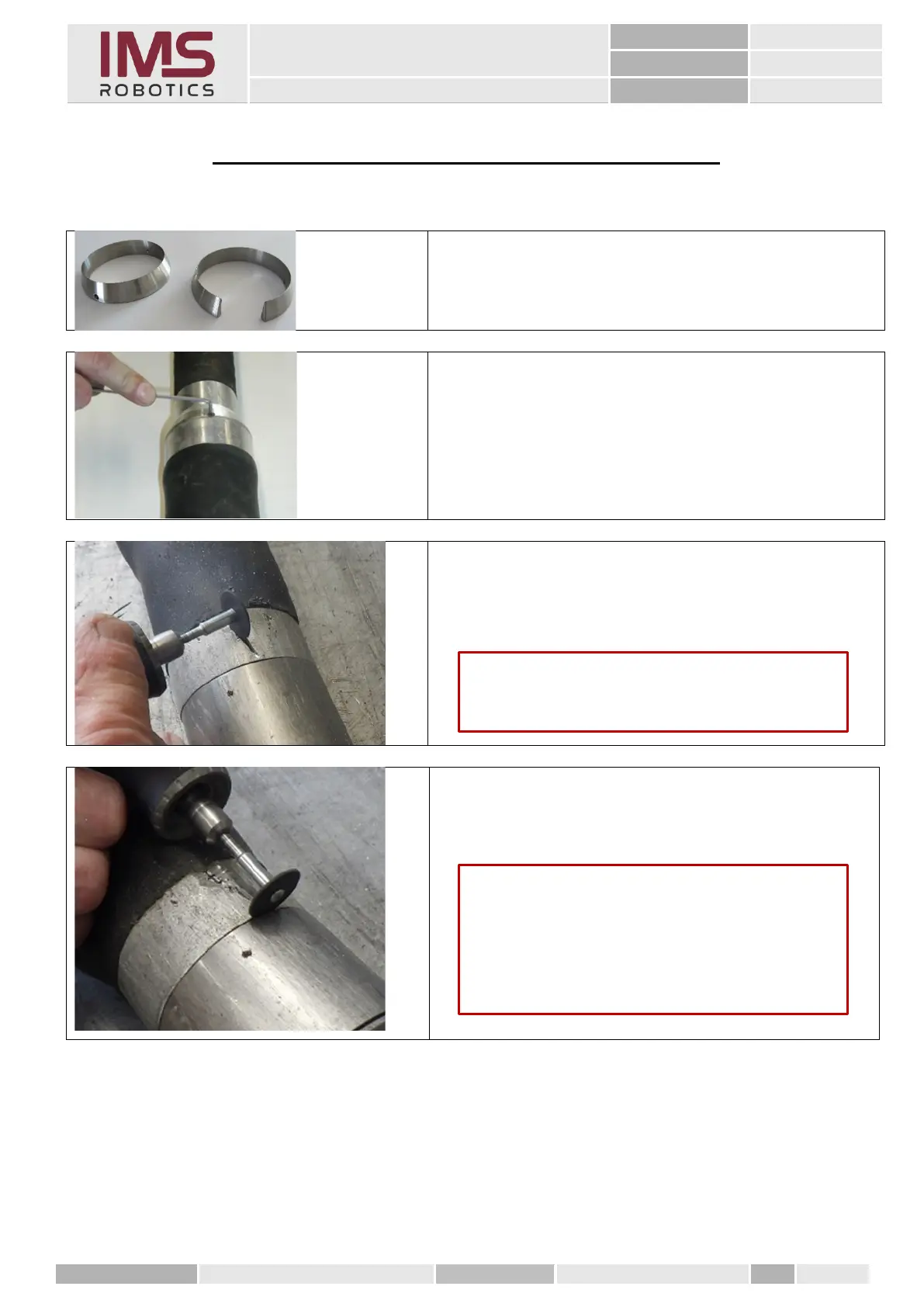

6. Removing the front radial air bag
1. Loosen both the contour pieces
045 01 111 Contour piece 2.1 (open)
045 02 003 Contour piece (closed)
To do this, remove 2 set screws M3x5.1. each
2. Carefully cut open the crimp ferrules using
DREMEL.
- Crimp ferrules, front (on the rotary unit)
Longitudinal section
- Crimp ferrule front
Cross section
Caution
If the radial air bag can be reused, the rubber may
not be damaged
Caution
In the cross-section, the crimp ferrule ring in the
rotary unit groove must be cut.
In doing so, the rotary unit may not be damaged.
