MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
25 of 113

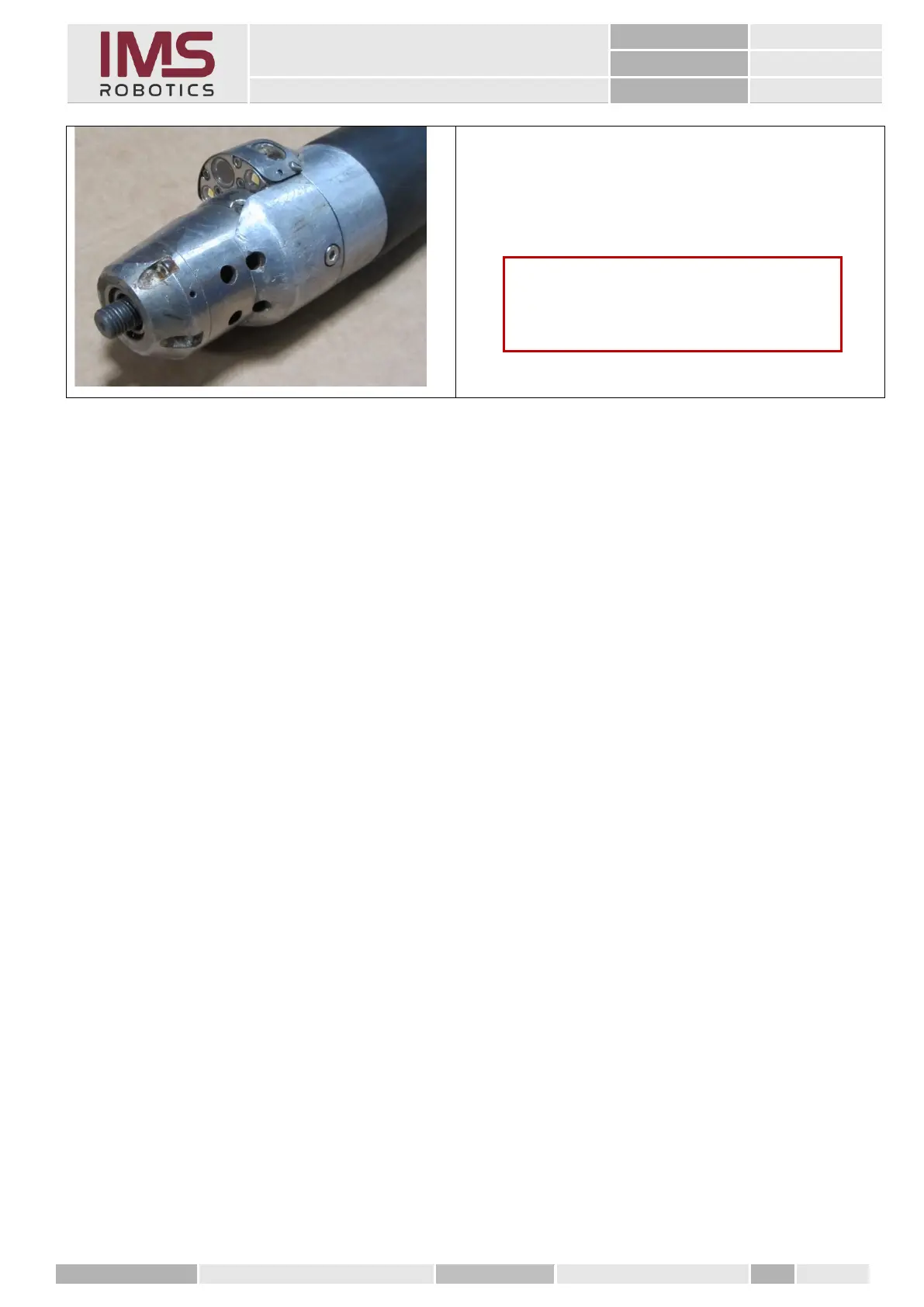

4. Mount the air motor and air motor cover using 4
DIN 912 M3x8.5 cylinder screws
Screw them together.
Caution
Camera, camera ring and air motor cover are
screwed together without Loctite.
