MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
24 of 113

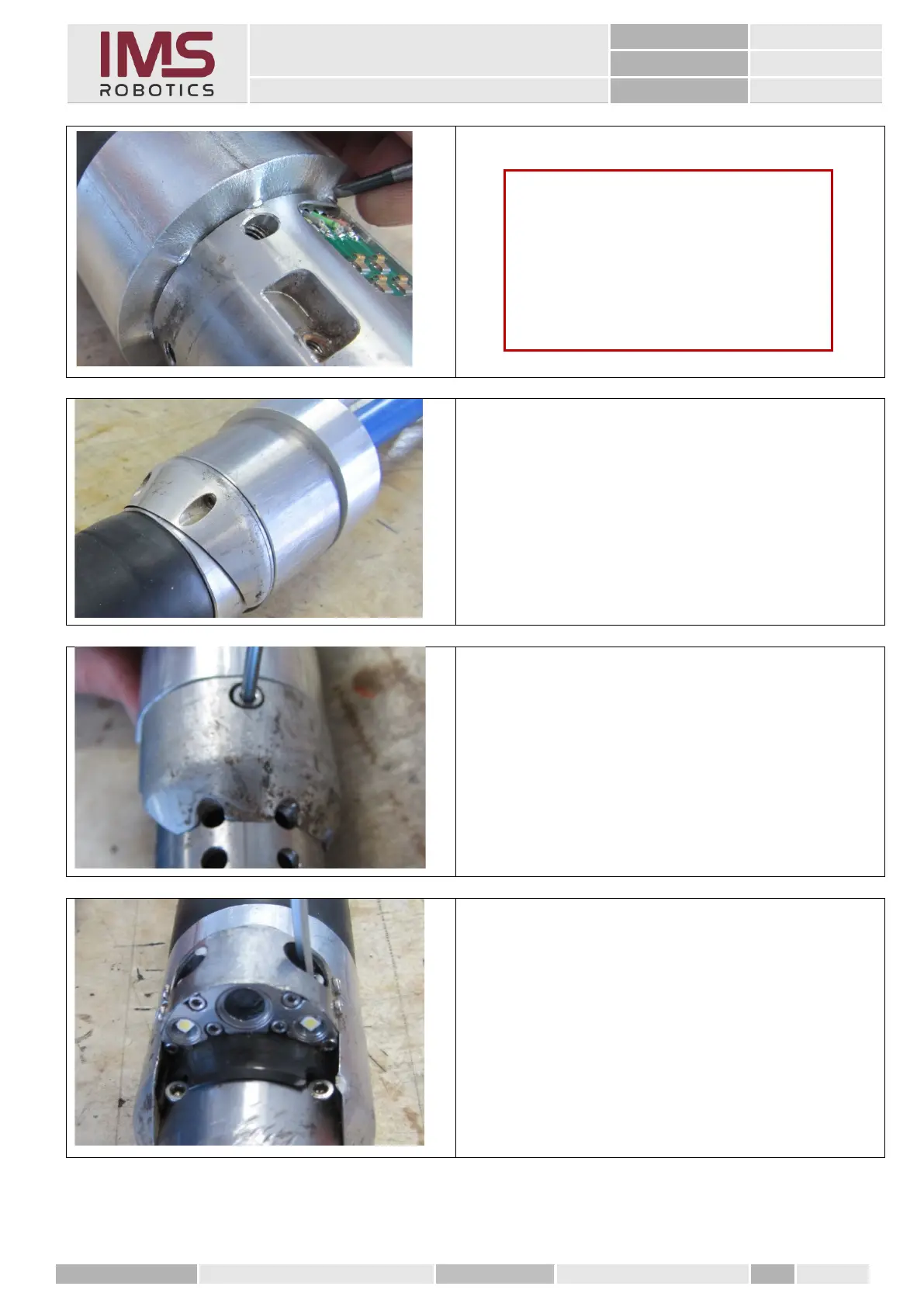

1. Mount the fitting (045 01 032) with 2 M3x6
cylinder screws and
Loctite 274 "blue".
2. Mount the camera ring using 2 M3x6 cylinder
screws.
3. Mount the camera using 2 M4x10.1 cylinder
screws.
Caution
It is important to remove the folds in the
crimp ferrule that are formed during
crimping by filing or grinding or scraping
off.
These would cause problems when
mounting the camera and the camera ring.
