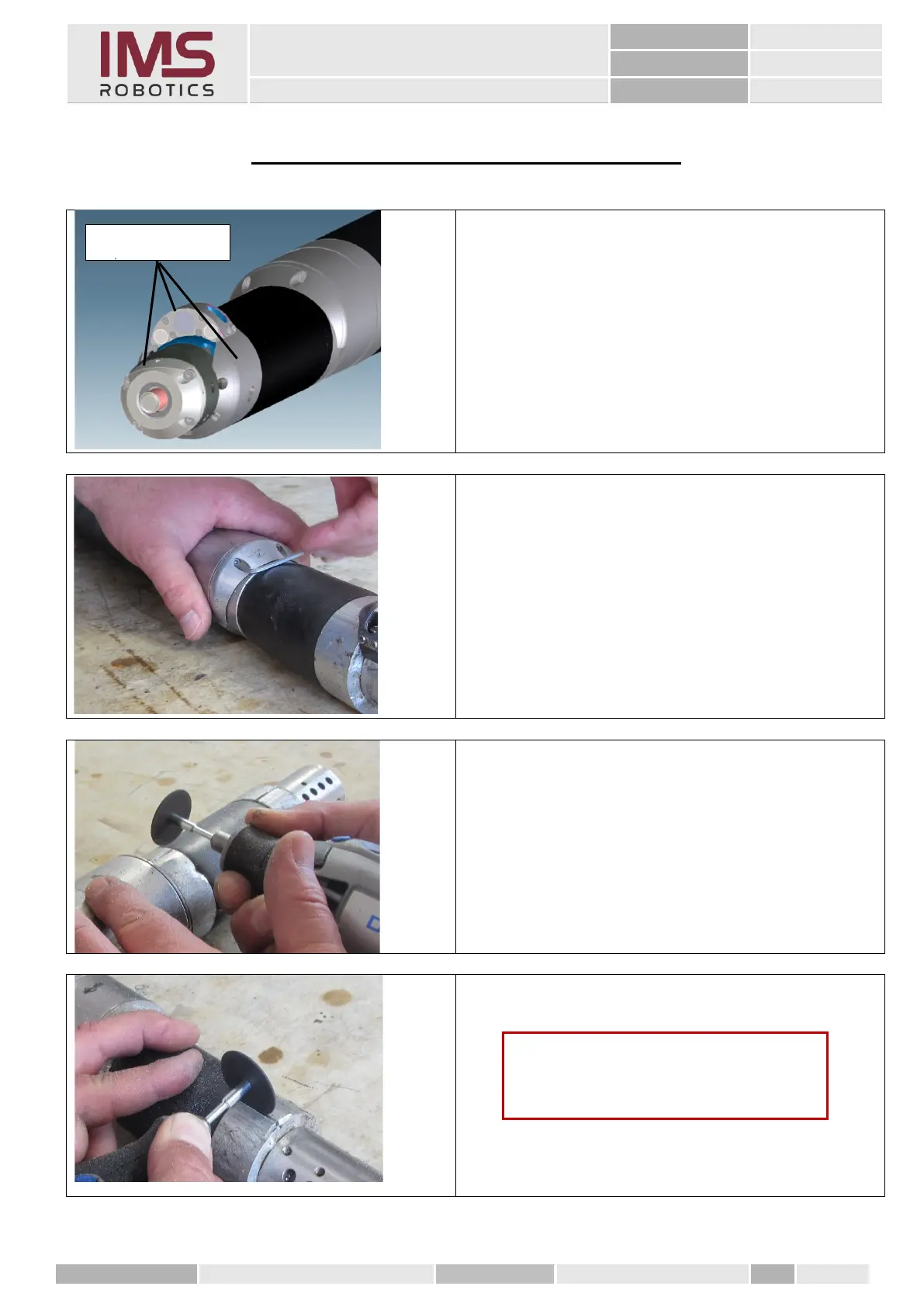

4. Removing the lifting air bag
1. Remove the air motor, camera and camera
ring.
2. Remove the fitting (045 01 032)
(2 M3x6 cylinder crews).
1. Carefully cut open both the crimp ferrules
on the lifting unit using DREMEL.
Removal
Caution
Do not cut into the rubber if you are
reusing the lifting air bag.
