MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
20 of 113

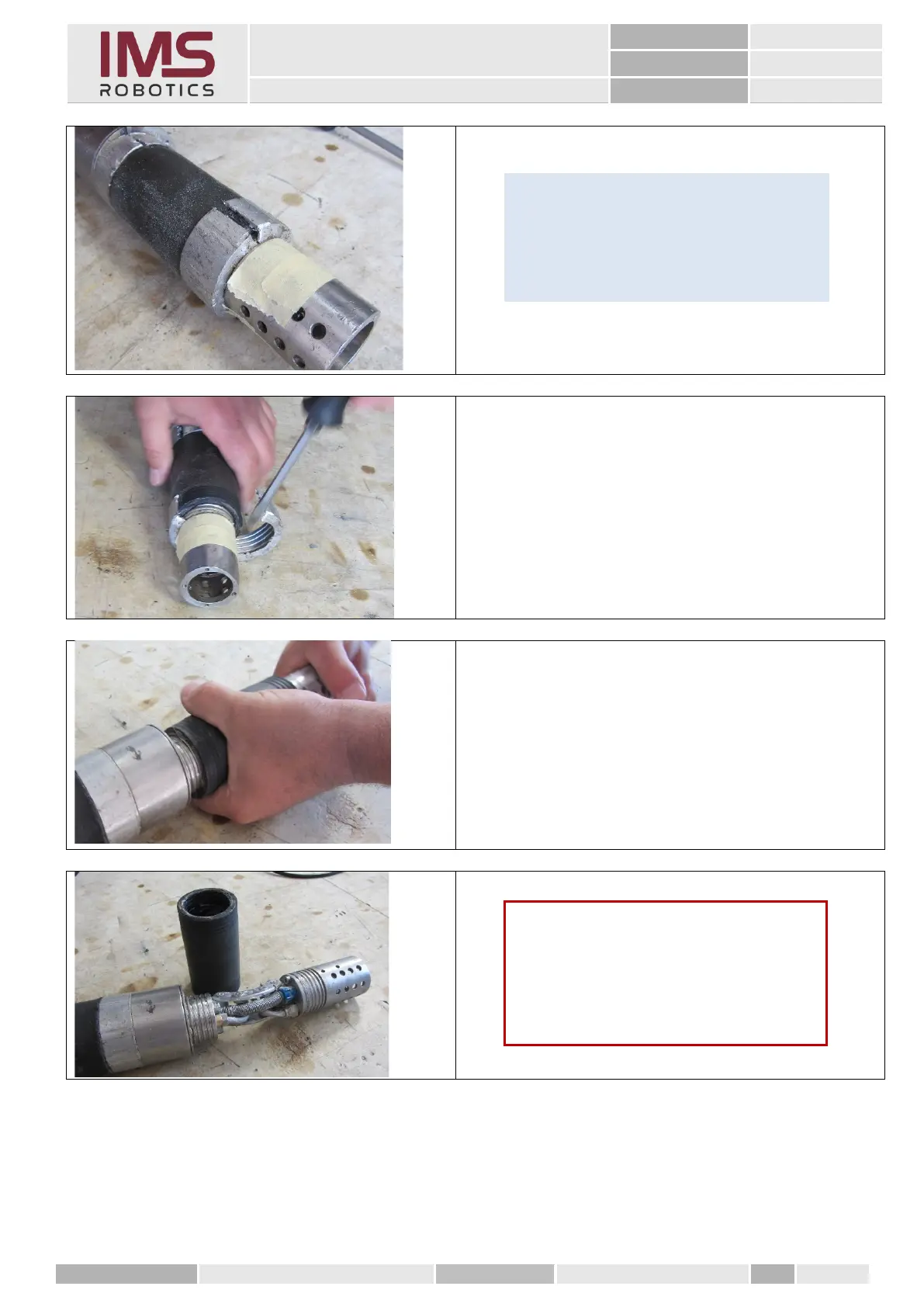

2. Use a screwdriver to break open/pry open
the crimp ferrules.
1. Carefully remove the lifting air bag from the
front.
Tip
Cover the spring contact PCB of the camera
with adhesive tape to protect it from dust
and damage.
Caution
When removing the lifting air bag, the
adhesive tape used for protecting the
spring contact PCB has to be removed
again. Be very careful so as not to damage
it!
