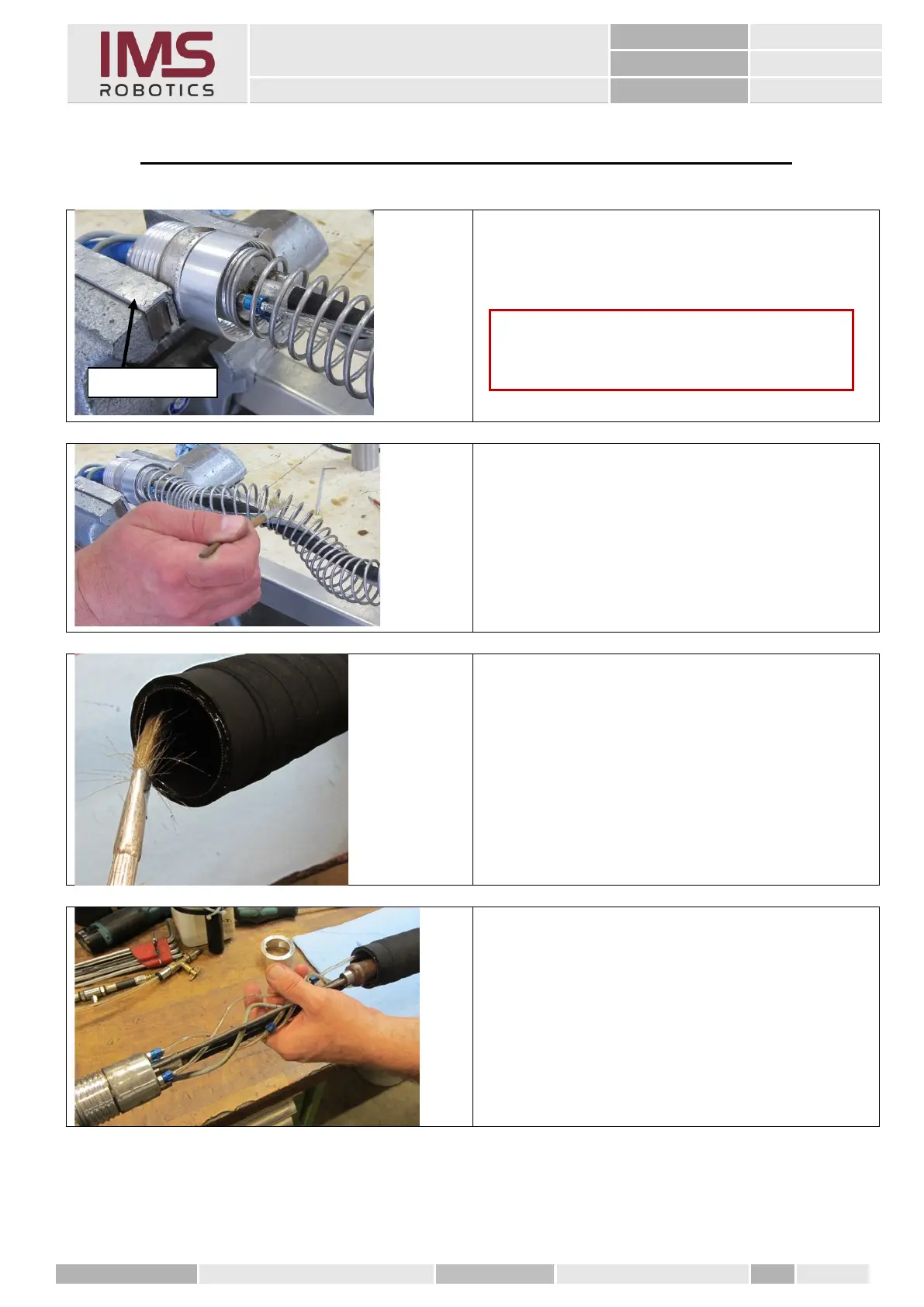

11. Mounting the axial movement mechanism
1. Clamp the front distributor in a vice and
slide the crimp ferrule on.
2. Apply release agent to the compression
spring to make it easy to mount the axial
movement mechanism.
3. Apply release agent to the compression spring
to make it easy to mount the axial movement
mechanism.
4. Gather all the tubes and cable and guide them
into the axial movement mechanism
Caution
Clamp the distributor in a vice only using
protective jaws.
Schutzbacken
