MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
51 of 113

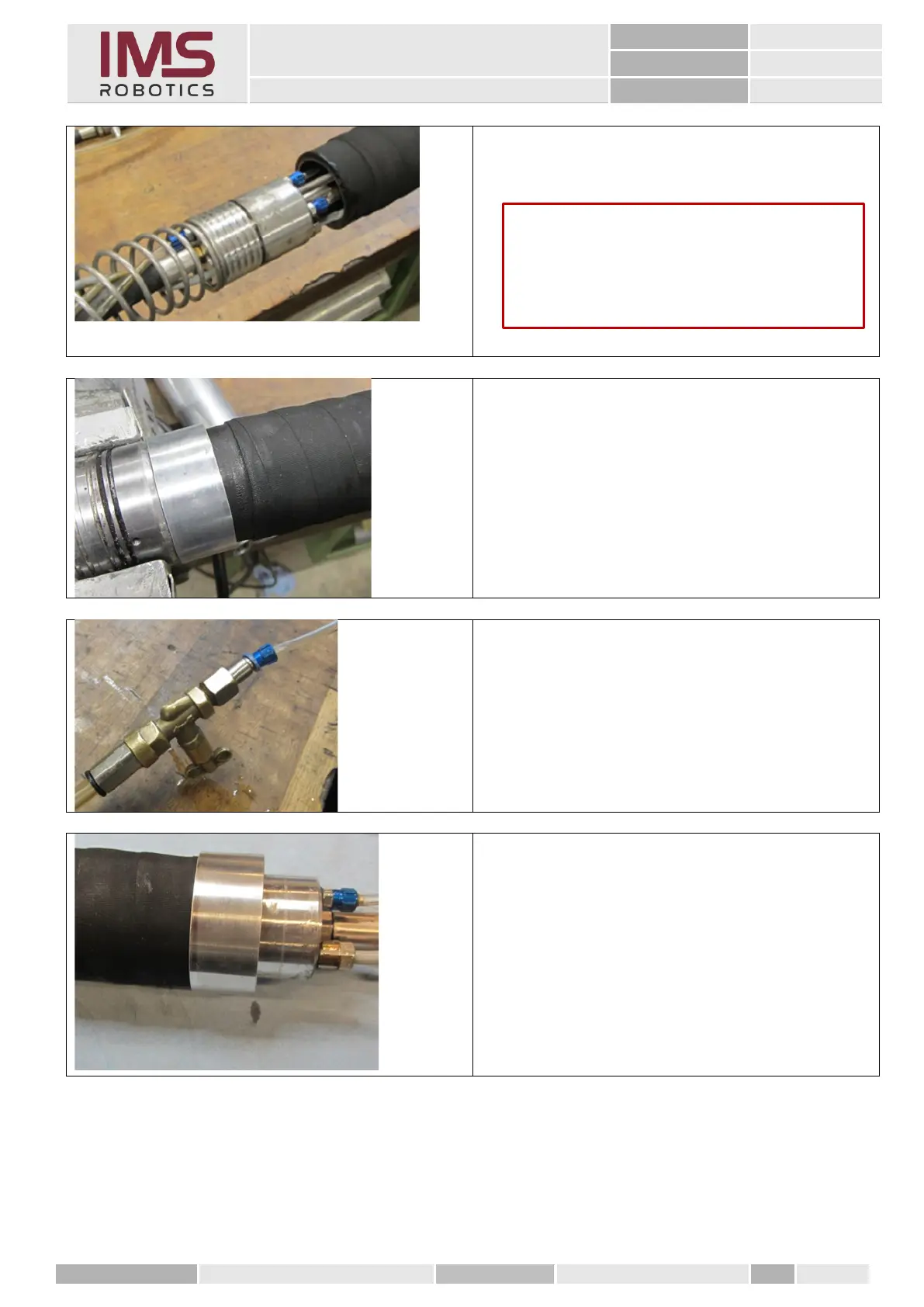

5. Slide the axial movement mechanism over the
centre distributor and compression spring
Once the axial movement mechanism is inside the front
crimp ferrule,
6. allow compressed air into the axial area
This causes the axial movement mechanism to inflate,
the pressure spring can relax and the centre distributor
moves into its correct position
7. Now place the rear crimp ferrule on the
distributor and guide it up to the axial
movement mechanism
Caution
When pushing the axial movement mechanism,
pull the centre distributor using the threaded
rod so that the movement mechanism slips over
the compression spring.
