IMS ROBOTICS MICRO S - Page 52

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
52 of 113

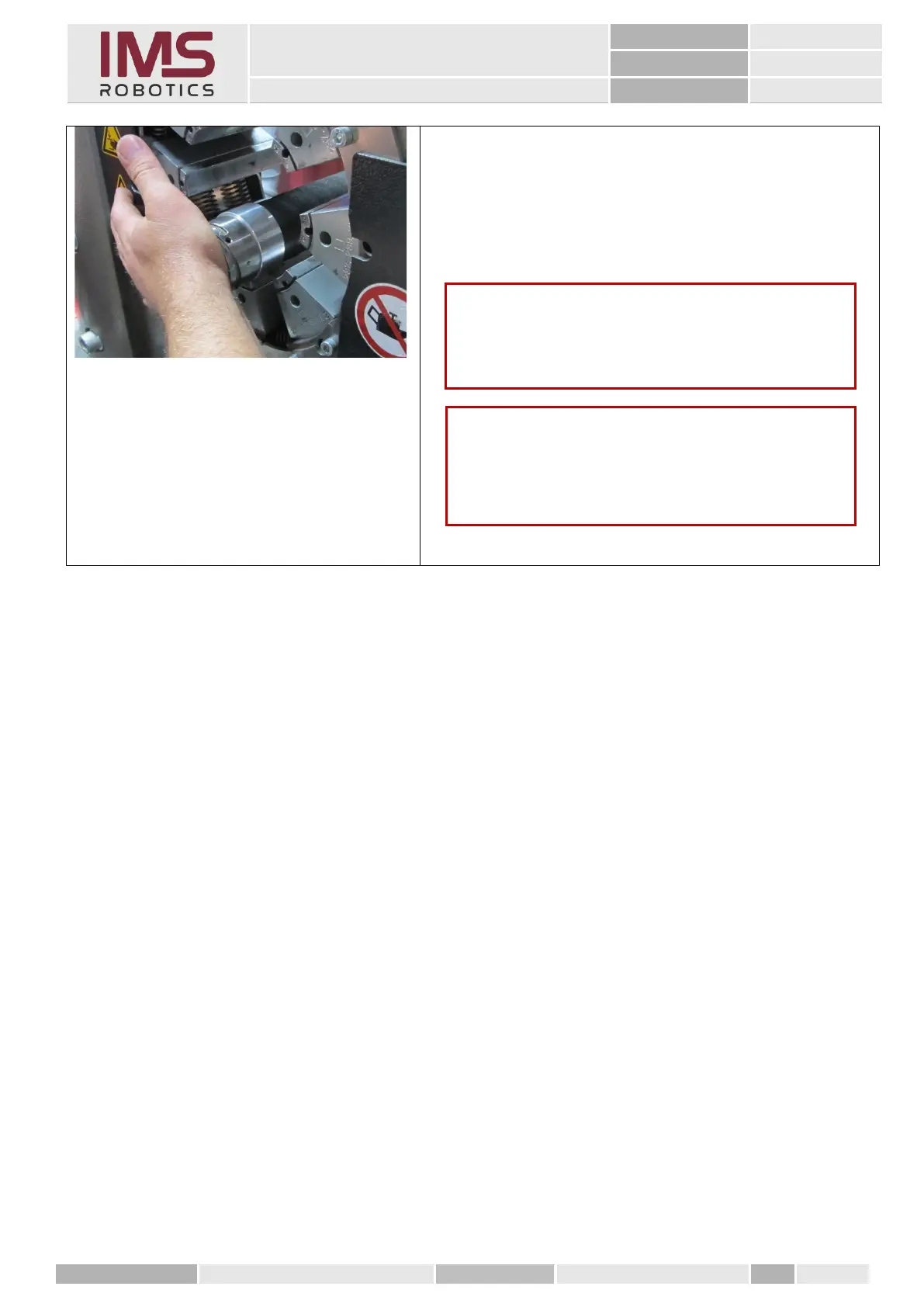

1. Crimp axial movement mechanism
(crimping dimension 50.5 mm/50 mm crimping
jaws)
2. Crimping in three steps, each with slight rotation
of the tool.
Caution
Compress the axial feed during the crimping process.
This ensures that the axial movement mechanism is
inserted into the crimp ferrules as fas as possible.
Caution
After crimping, it is important to check if air can get
into the internal media!
See section "Checking the air-tightness"
