MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
49 of 113

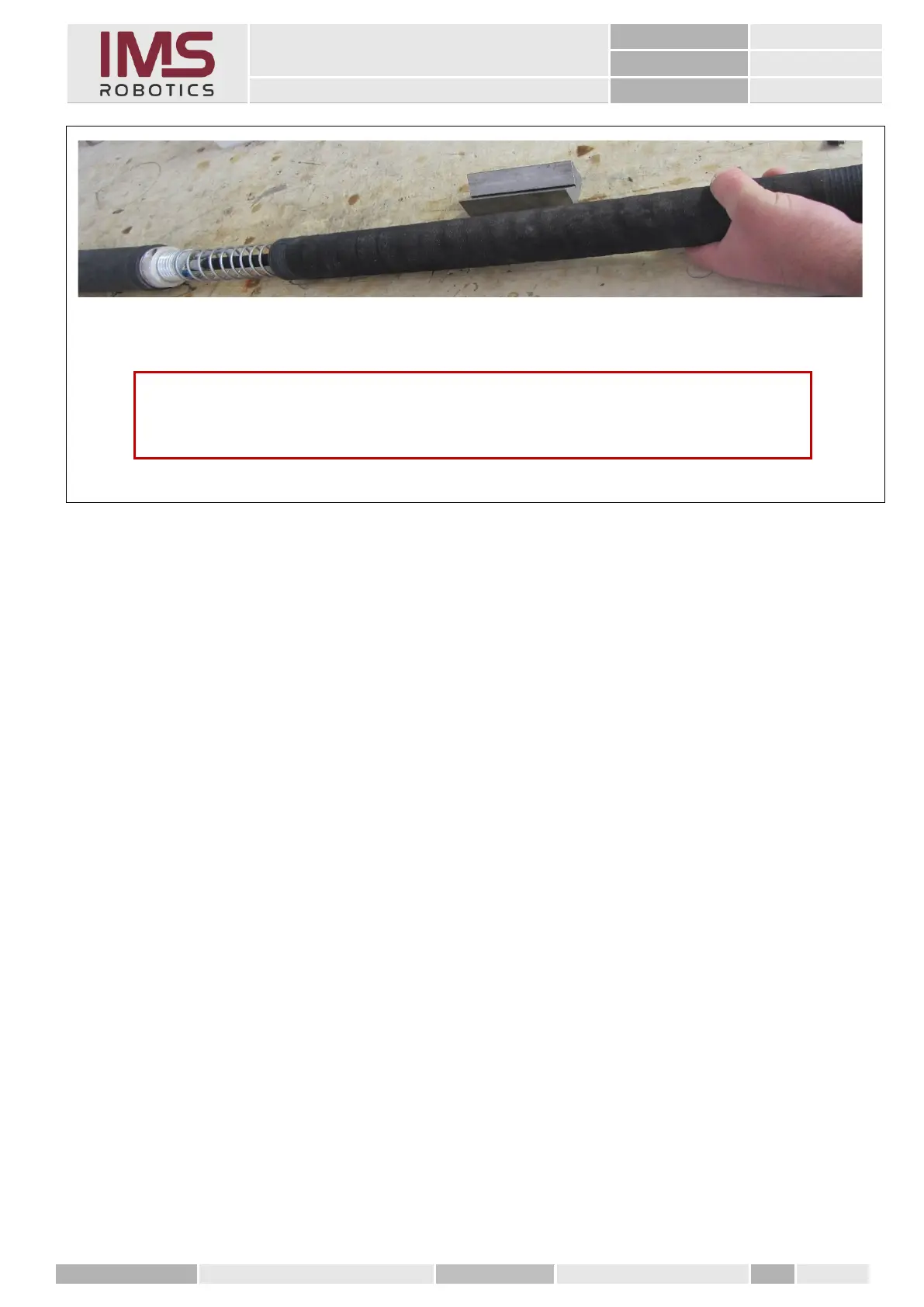

6. Now the axial movement mechanism can be removed over the centre distributor
Caution
Do not pull the front distributor, the compression spring or the axial hose. This could damage
the inner air hoses or the cable connection.
