MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
46 of 113

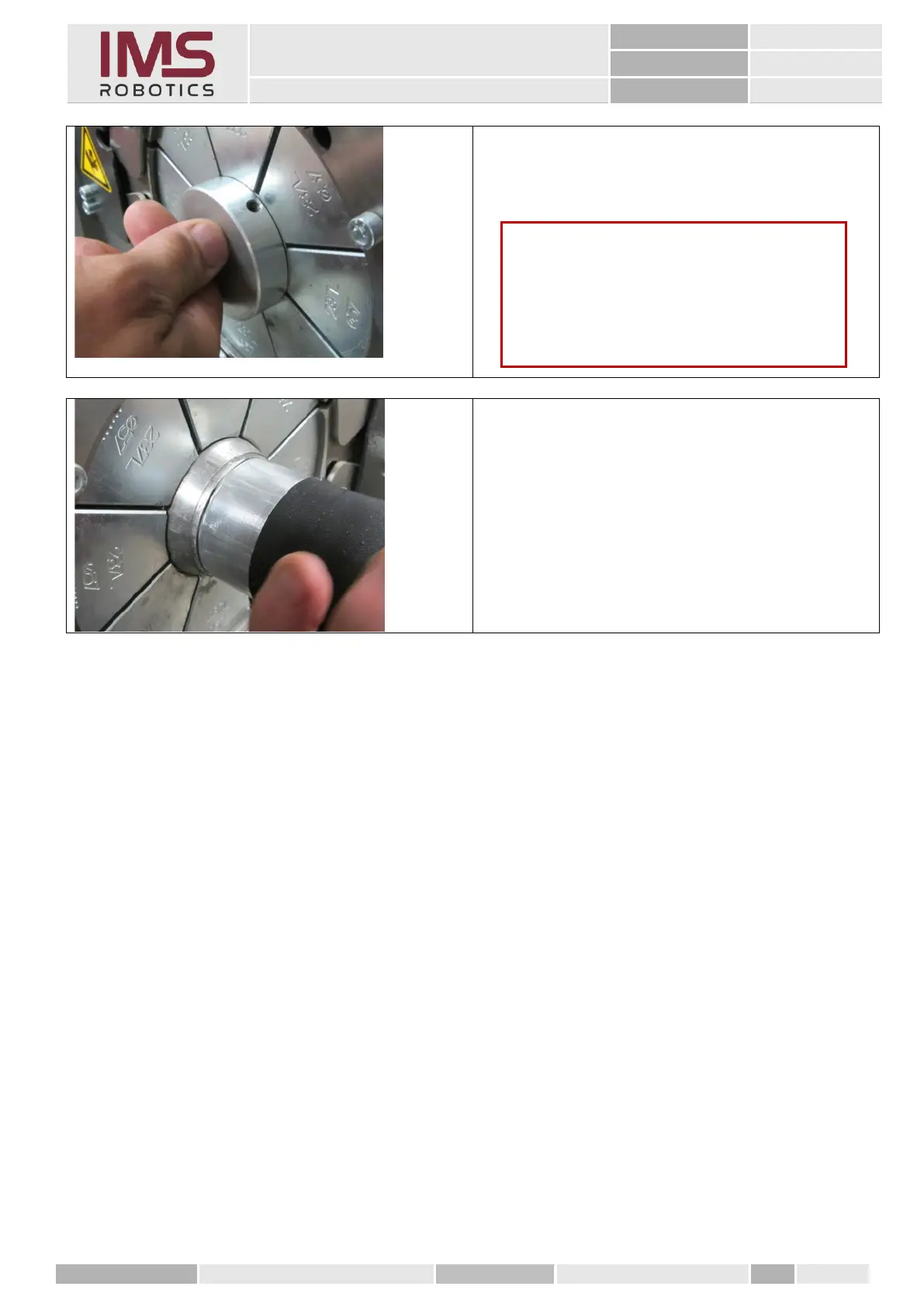

31. Crimp the rear crimp ferrule
(60.5 mm crimping dimension/ 57 mm
crimping jaws)
32. Crimp the 2nd crimp ferrule in the same way
Caution
Crimp the crimp ferrule in 6-8 steps! Turn
forward by about 1 cm each time after
crimping!
Gradually increase the pressure until full
pressure is applied at the end.
