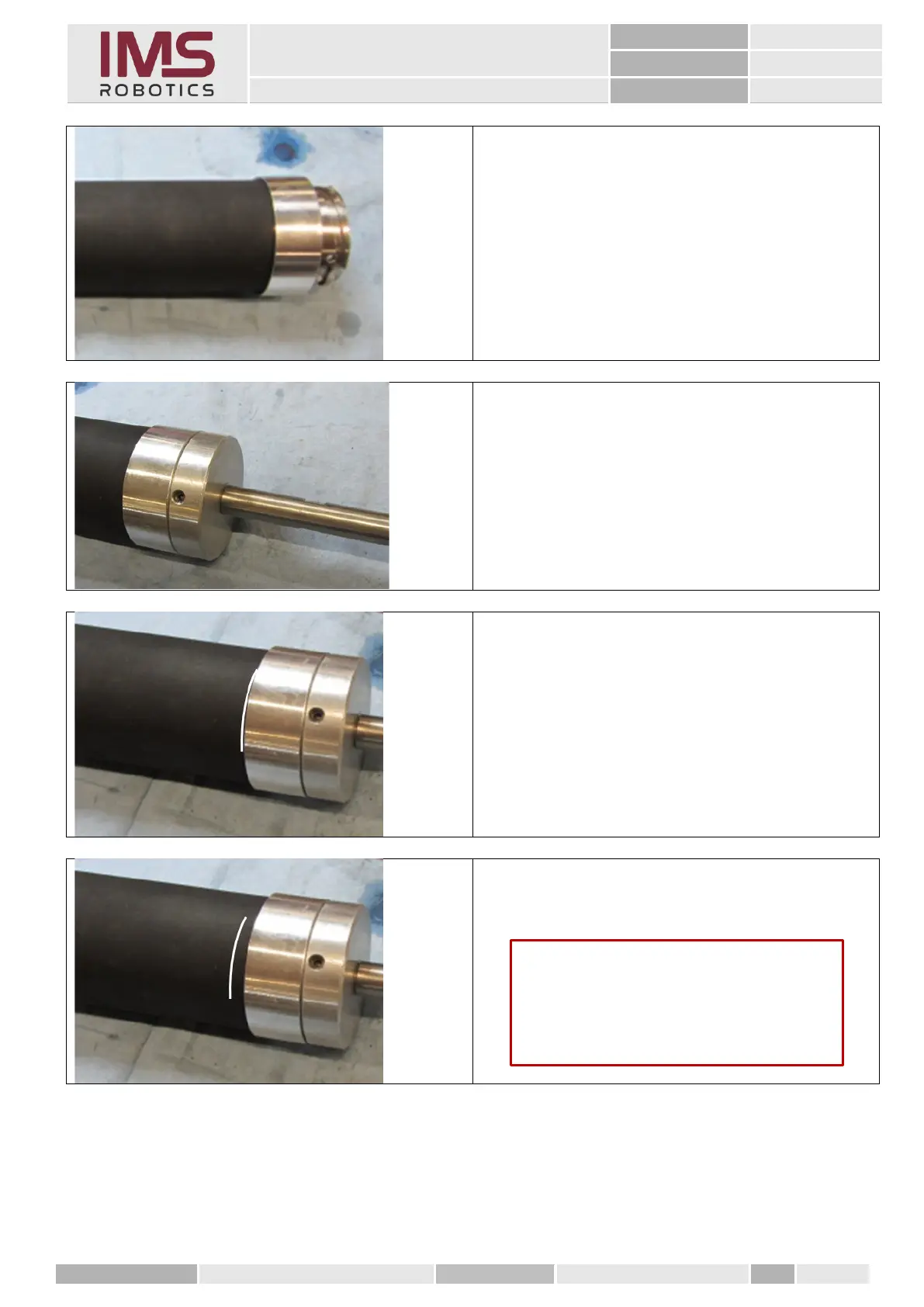

27. Insert the second crimp ferrule onto the radial
air bag
28. Mount assembly tool for crimp ferrule
clamping air bag 8 pol. bayonet to rear
distributor
29. Push the radial air bag and crimp ferrule all the
way to the assembly tool and mark the radial
air bag just behind the crimp ferrule
30. Pull the radial air bag 2 mm out of the crimp
ferrule again
Caution
Make sure that the crimping ferrule still
touches the assembly tool and that the
positions of the air bag and the ferrule do
not change during crimping
