IMS ROBOTICS MICRO S - Page 44

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
44 of 113

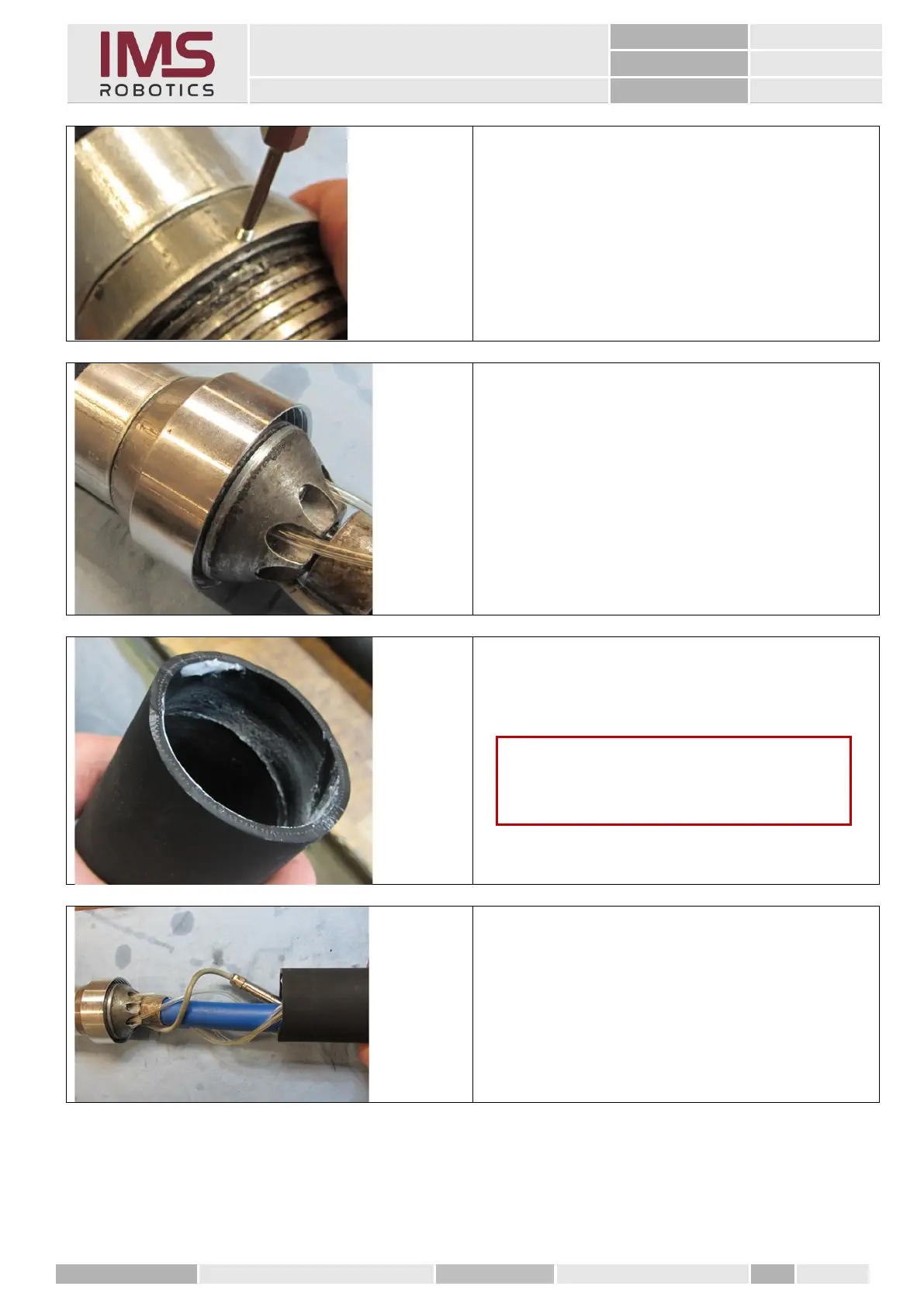

23. Fasten contour piece using 2 set screws M3x5
mm
24. Push a new crimp ferrule (045 01 007) over the
centre distributor up to the contour piece
25. Apply "Lubricant for plugin systems" to
the inside of the radial air bag
26. Push the radial air bag over the rear distributor
onto the centre distributor until it is under the
crimp ferrule
Caution
Oils and/or greases are not permitted to
improve the sliding property!
