MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
43 of 113

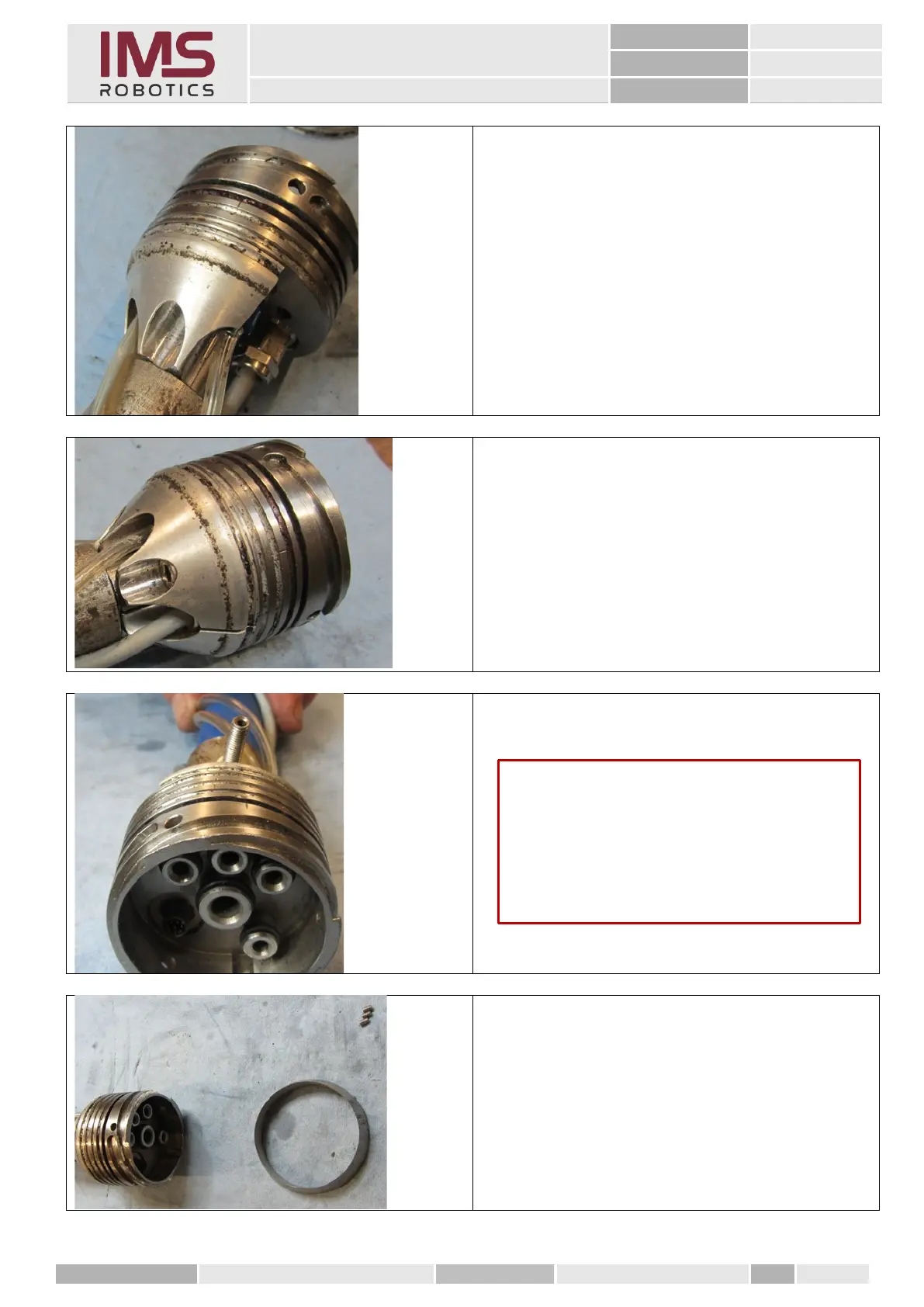

20. Mounting the moulded part 2 with two M5x18
cylinder screws
21. Mounting the moulded part 1 with two M5x18
cylinder screws
22. Guide the closed contour piece over the rear
distributor
(with the narrow side facing forward)
Caution
When assembling moulded part 1, make sure
that the screw with through hole is placed in the
correct position.
This position is the middle compressed air hole
of the three adjacent connections.
