MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
33 of 113

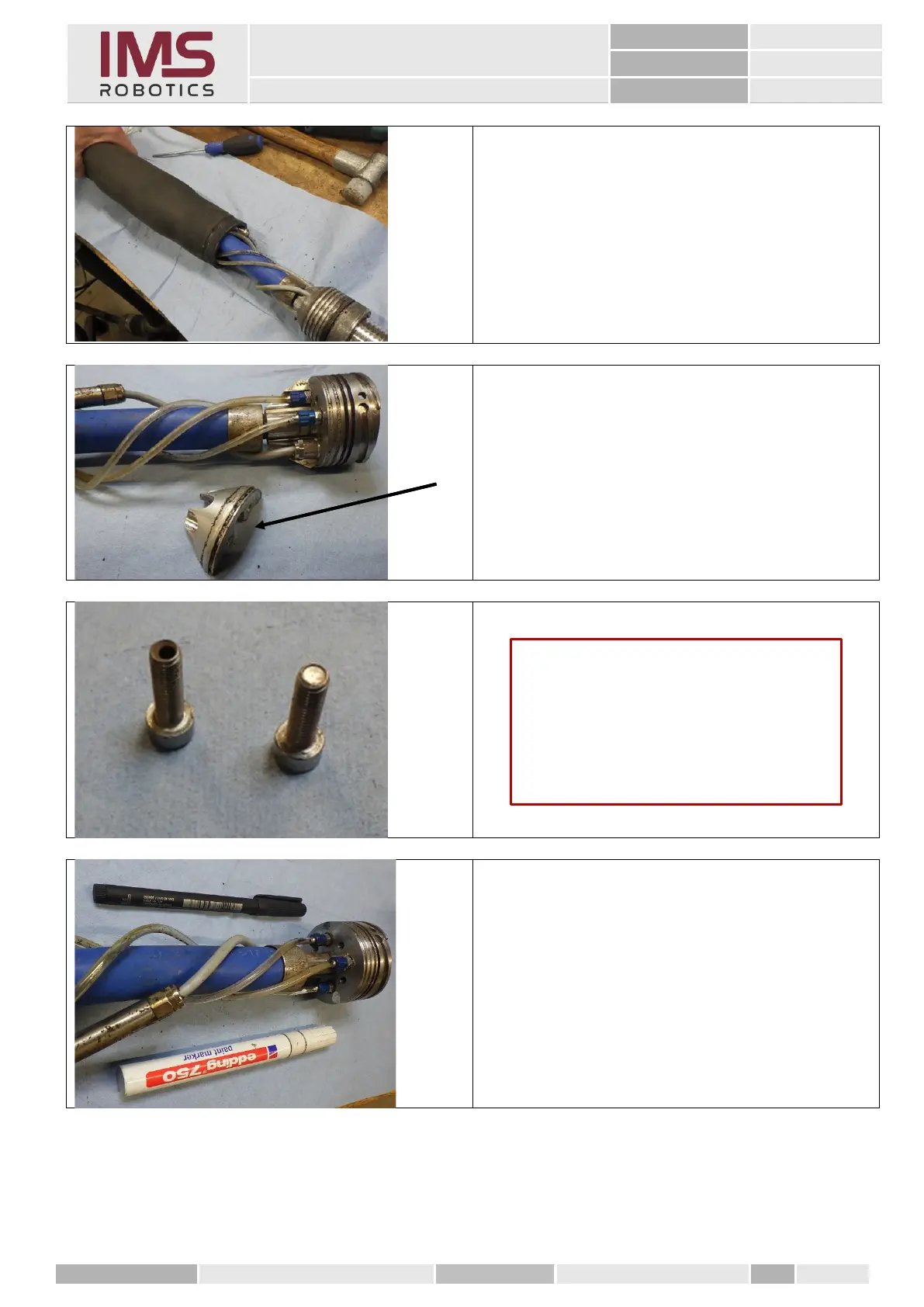

4. Pull radial air bag backwards over the
distributor
5. Dismantling the two moulded parts
6. Before dismantling the compressed air hoses,
they must be marked.
Caution
One of the two mounting screws of the
moulded part 1 has a through hole. This is
used to supply compressed air to the rear
air bag. When reassembling, make sure
that this screw is fixed in the correct
position.
