IMS ROBOTICS MICRO S - Page 34

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
34 of 113

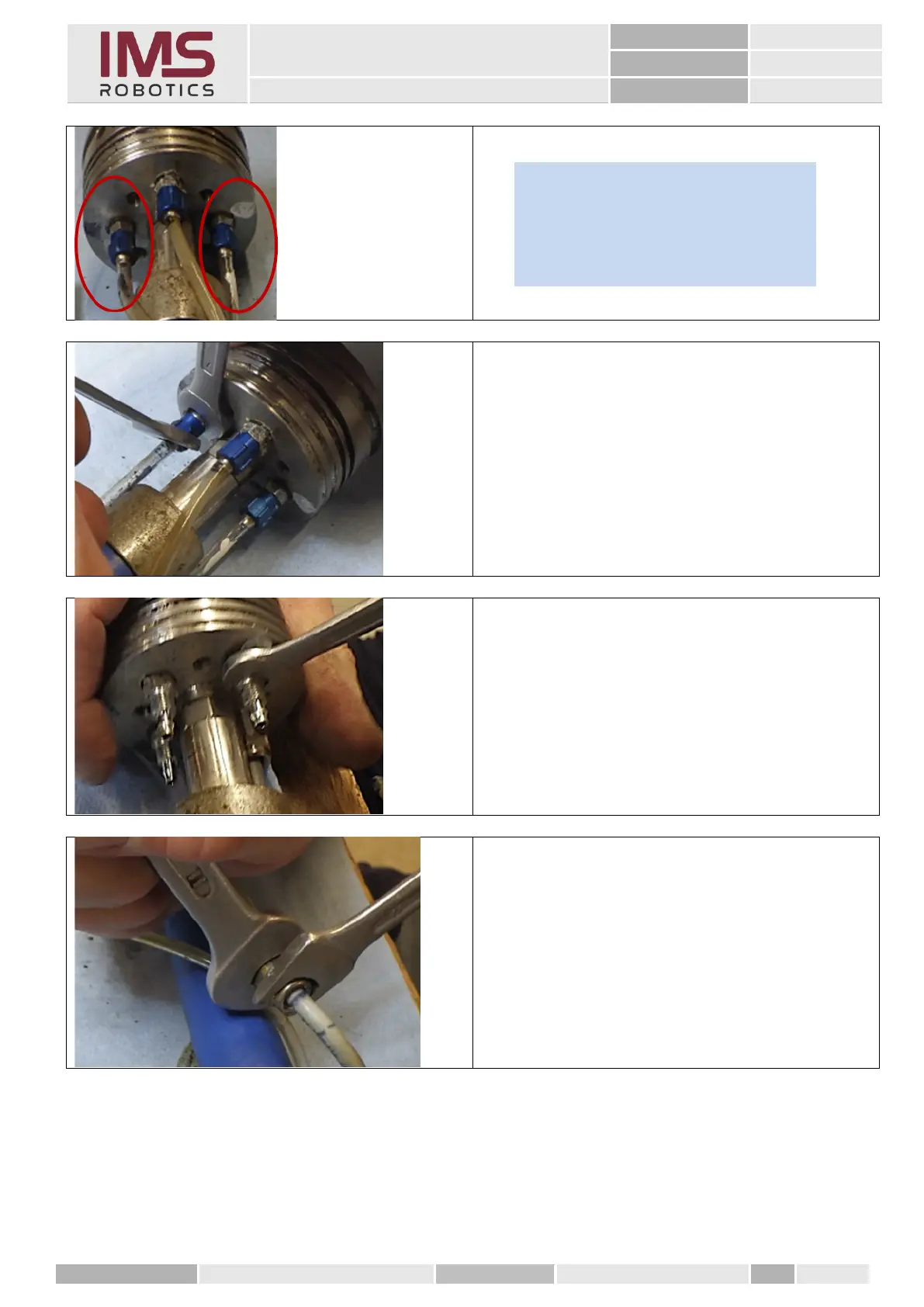

7. Open the cover of the quick-fit connector and
remove the compressed air hoses
8. Unscrew the quick-fit connector from the rear
distributor
9. Open the cover of the ferrule cable entry (on
both sides)
Tip
It is sufficient if two of the three hoses
are marked. It is best to use coloured,
permanent marker pens for this
purpose
