MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
39 of 113

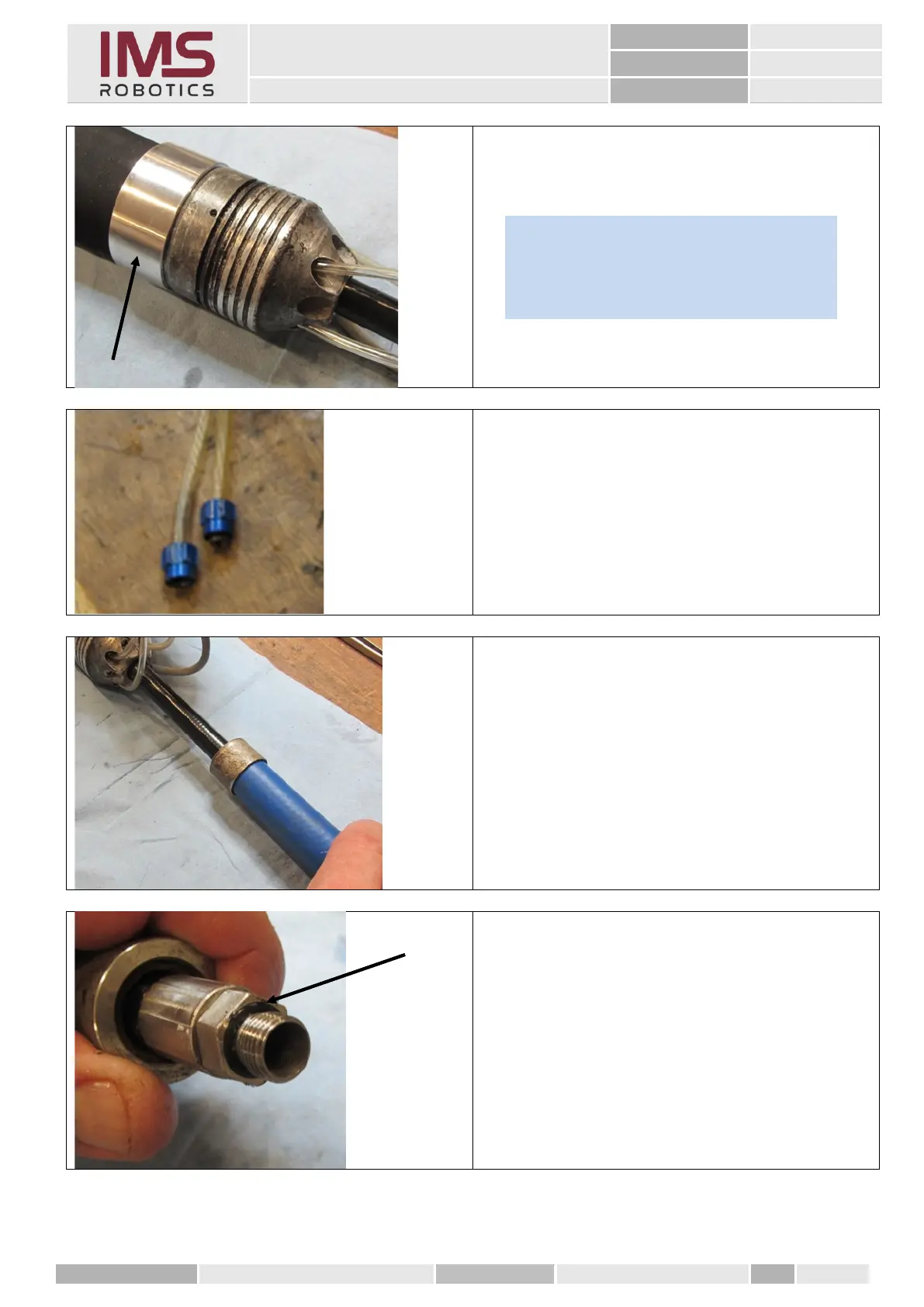

4. Slide distributor centre 2 over distributor centre
1 and fix using 45 x M5x20 mm cylinder head
screws.
5. Place the cover of the quick-fit connectors back
on all three hoses
6. Push the blue sliding hose over the cutting air
hose
7. Remove grease from the cutting air hose sleeve
and replace the O-ring (011 18 088)
Tip
Do not forget the crimp ferrule of the axial
movement mechanism
