IMS ROBOTICS MICRO S - Page 60

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
60 of 113

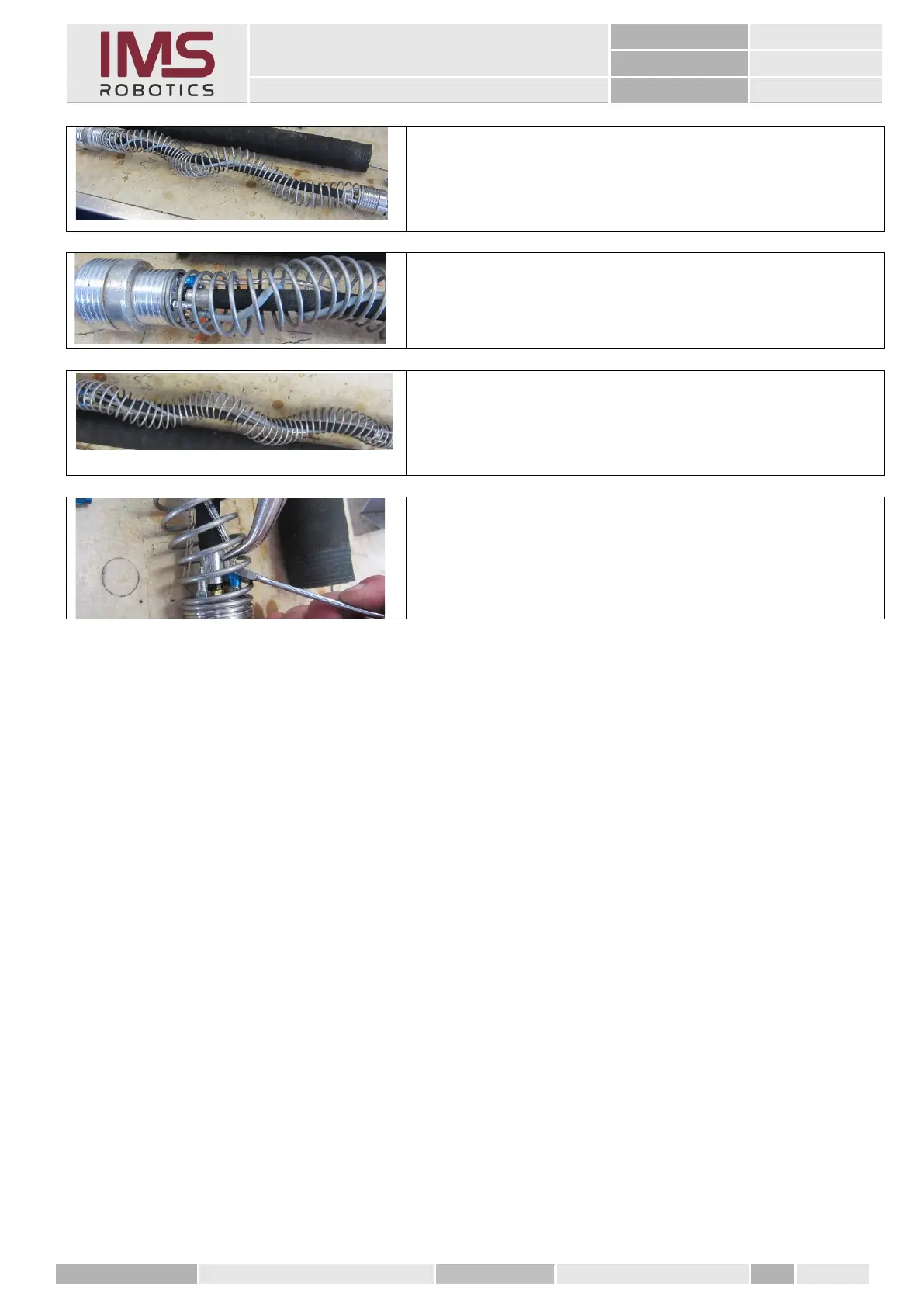

2. Guide the PU hoses under the spring and route them
so that they wrap twice around the axial hose and
there are no cross overs.
3. Slide the PU hoses on one side over the quick fastener
and tighten firmly.
4. The length of the cut PU hoses is the stretched length
of the axial hose plus 30 mm in the wrapped
condition.
5. When screwing the second side, hold the PU hose
carefully so that it does not turn while screwing.
