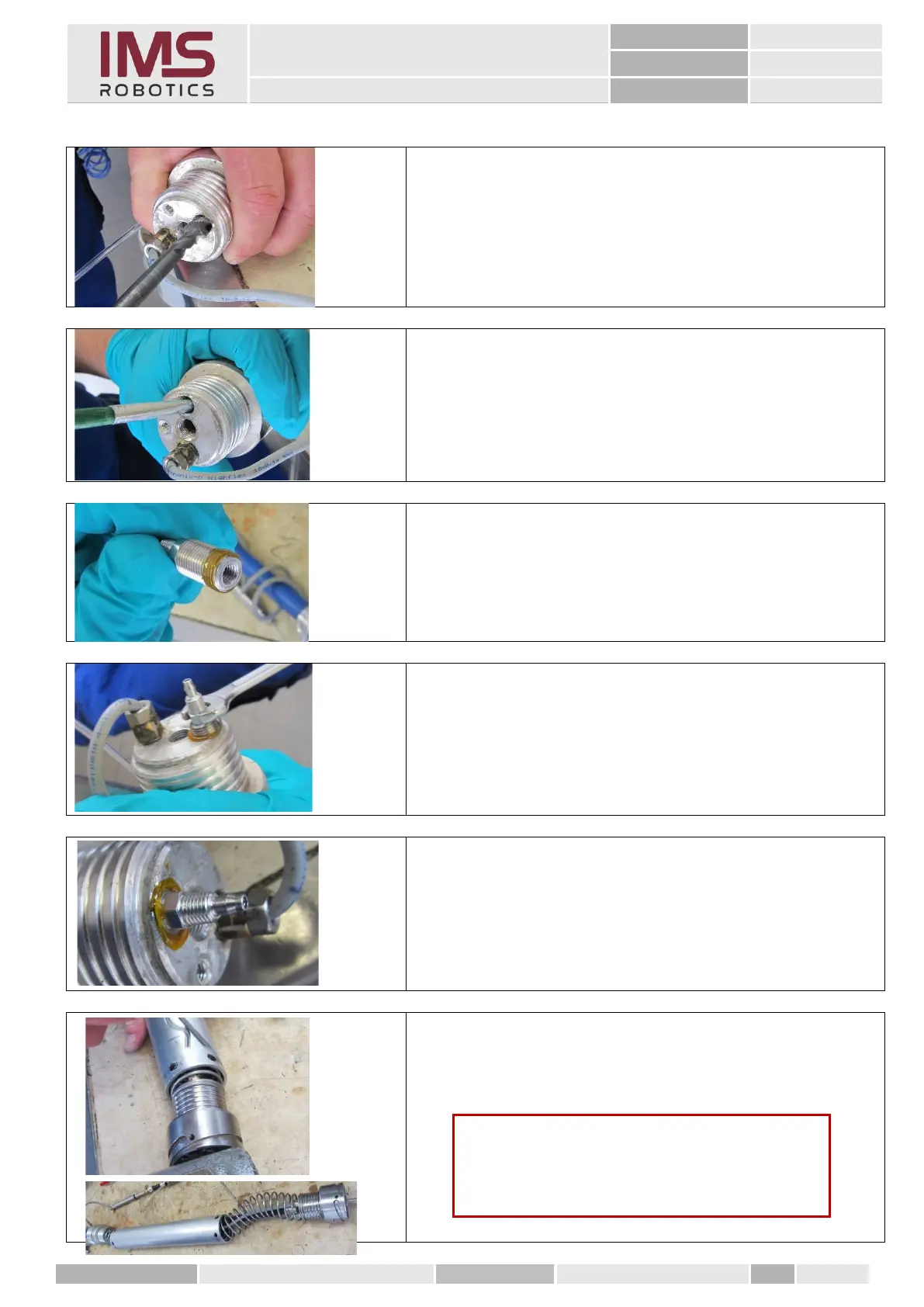

IMS ROBOTICS MICRO S - Page 59

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
59 of 113
3. Re-tap the internal thread G 1/8, clean it, blow it with
compressed air, remove grease using white spirit,
and apply activator Loctite 7649.
4. Insert a quick-release coupling into the reducing
sleeve (without Loctite) and apply Loctite 577
"yellow" to the external thread.
5. Screw the reducing sleeve in until it butts against the
housing of the distributor.
6. Remove excess adhesive immediately.
7. Unscrew the quick-release coupling after about 10
minutes and glue it along with the other fittings.
1. Release the axial spring by removing the spring split
pins.
Caution
Be careful when releasing the spring.
Either clamp the cutter motor or hold it firmly.
