tirb45e1 (2019-02) CDGxxxDxx.cp 9

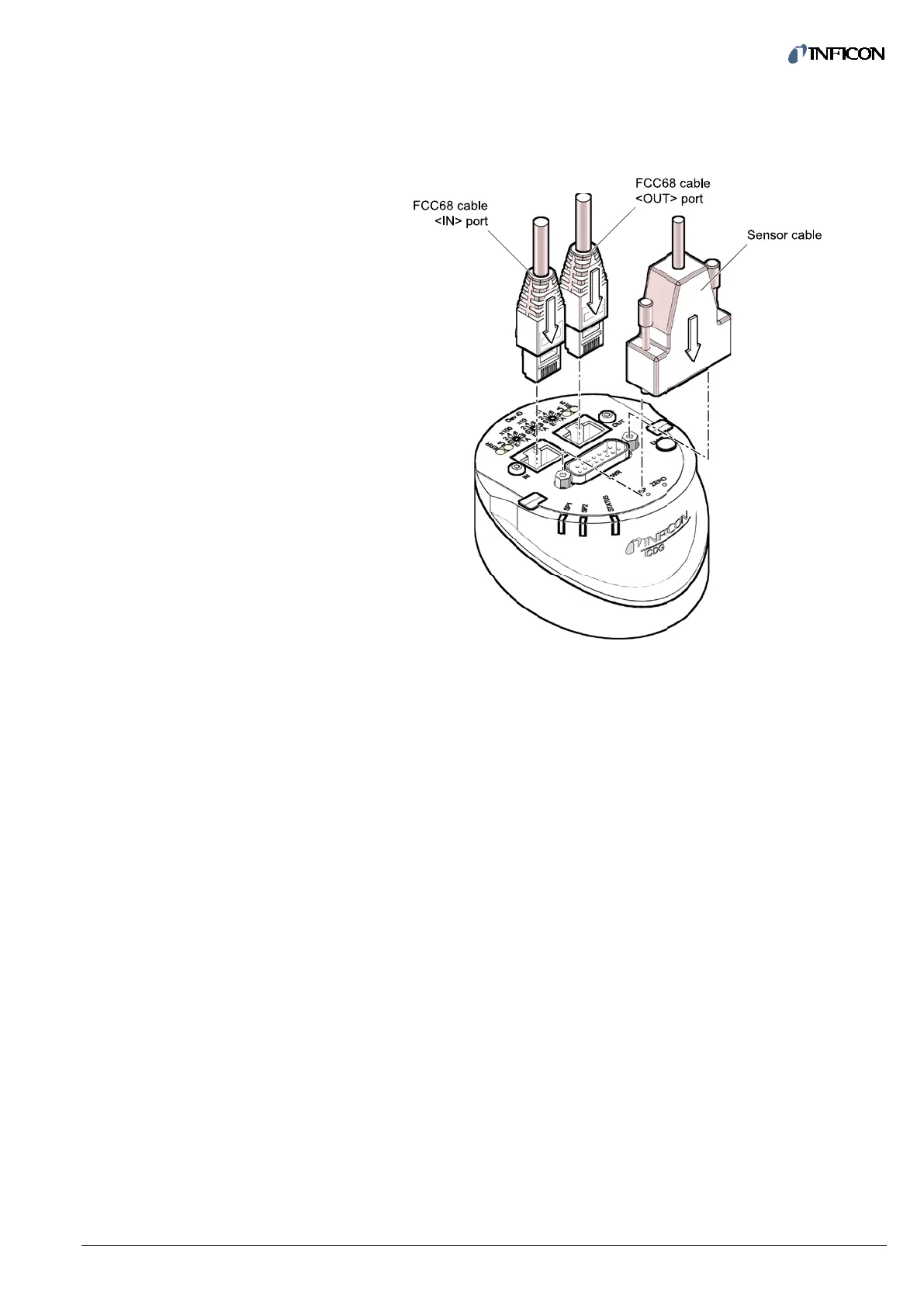

Plug the EtherCAT (and sensor) cables connector into the gauge: From the
previous device the cable connected to OUT port has to be connected to
the CDGxxxD <IN> port. And the cable from the CDGxxxD <OUT> port has
to be connected to the next device's <IN> port.
