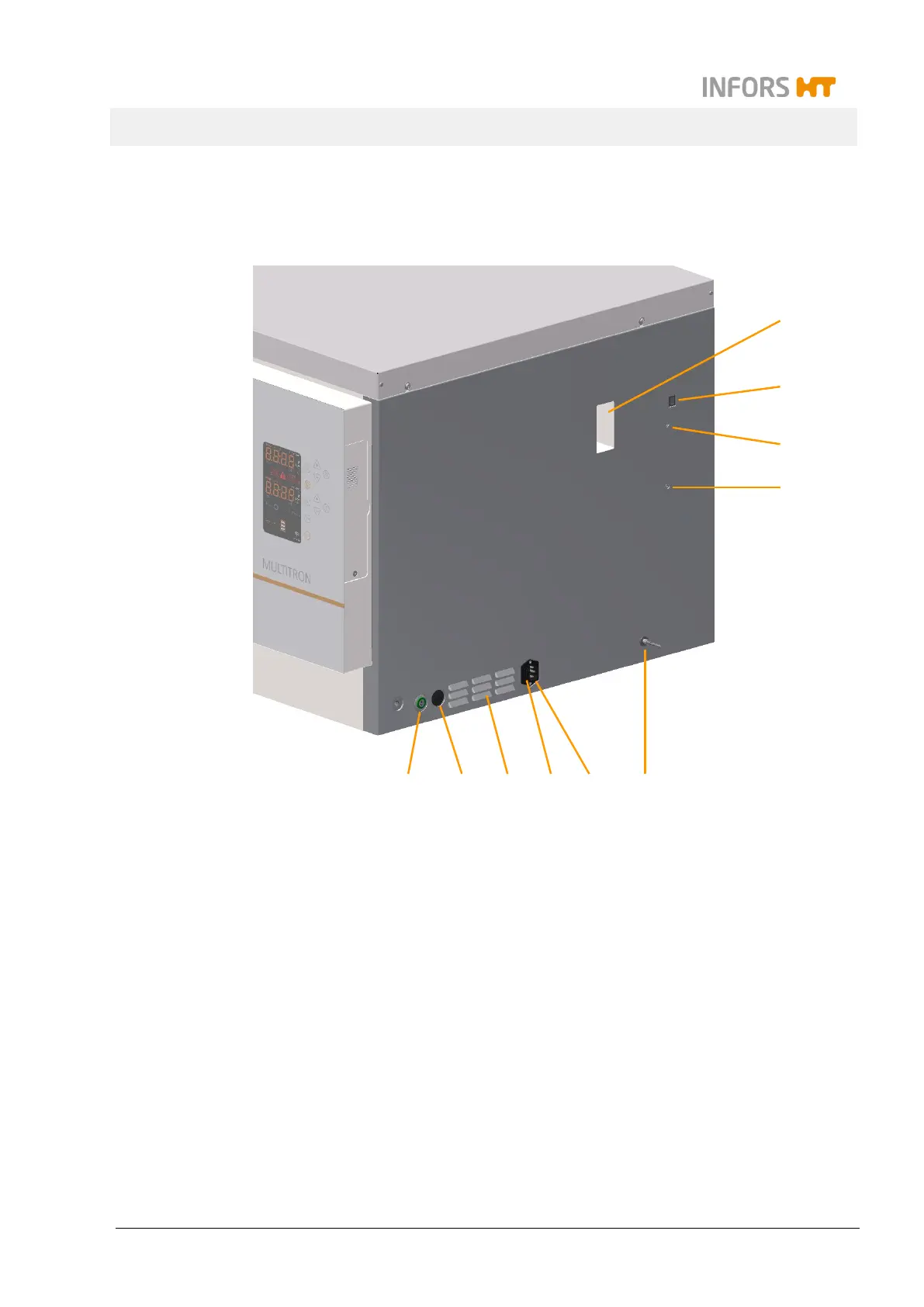

Connections and interfaces
1 Cable pass-through (optional)
2 Ethernet Interface (
LAN
)
3 Status LED (
STATUS,
only for service purpose)
4 Connection of external alarm (
EXTERNAL
ALARM
)
5 CO
2
connection (
CO
2
IN
, optional)
6 Mains connection (
MAINS
)
7 Slot for fuses (230 V version) or thermal
protection switches (115 V version)
8 Air vents
9 UV decontamination button (
UV
, optional)
10 Power switch (
POWER
)
1
3
5
6
9
10
4
8
2
7
