2.2 Console Components and Accessories
This section describes the console and optional cart for the CUSA Clarity Ultrasonic Surgical Aspirator System. It describes the major subsystem
components and accessories of the console.
Console Features

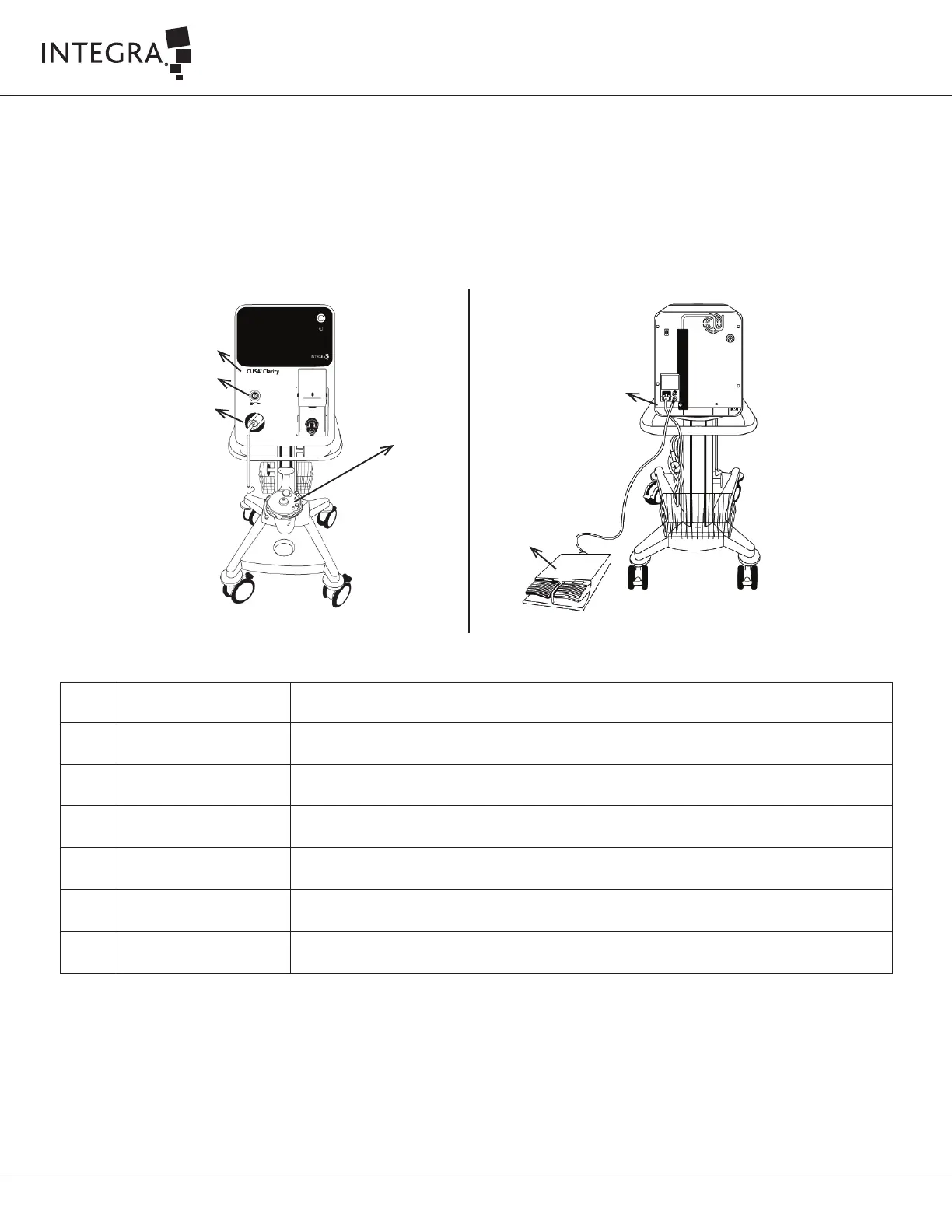

The figure illustrates the console on the optional cart. The components are described in the table.
➄
➅
Component Description
➀
Console Body
Houses the electronics, pumps, and mechanical parts. It includes a touchscreen that allows you to control
the functions of the system.
➁
Handpiece Connector Connector to plug in the surgical handpiece.
➂
Contamination Guard
The filter and tubing that connects between the canister and the console. This assembly filters any
remaining particulate maer or moisture, preventing them from entering the vacuum pump.
➃
Canister Holder Holder for user-supplied aspiration canister.
➄
AC Mains Connector
and Cable
Cable that plugs into a wall receptacle to provide power to the system.
➅
Footswitch
A device connected to the console that includes two pedals used to control the amplitude and irrigation
fluid.
