CUSA® Clarity System Service and Maintenance Manual Page 75 of 117 0645403-2-EN

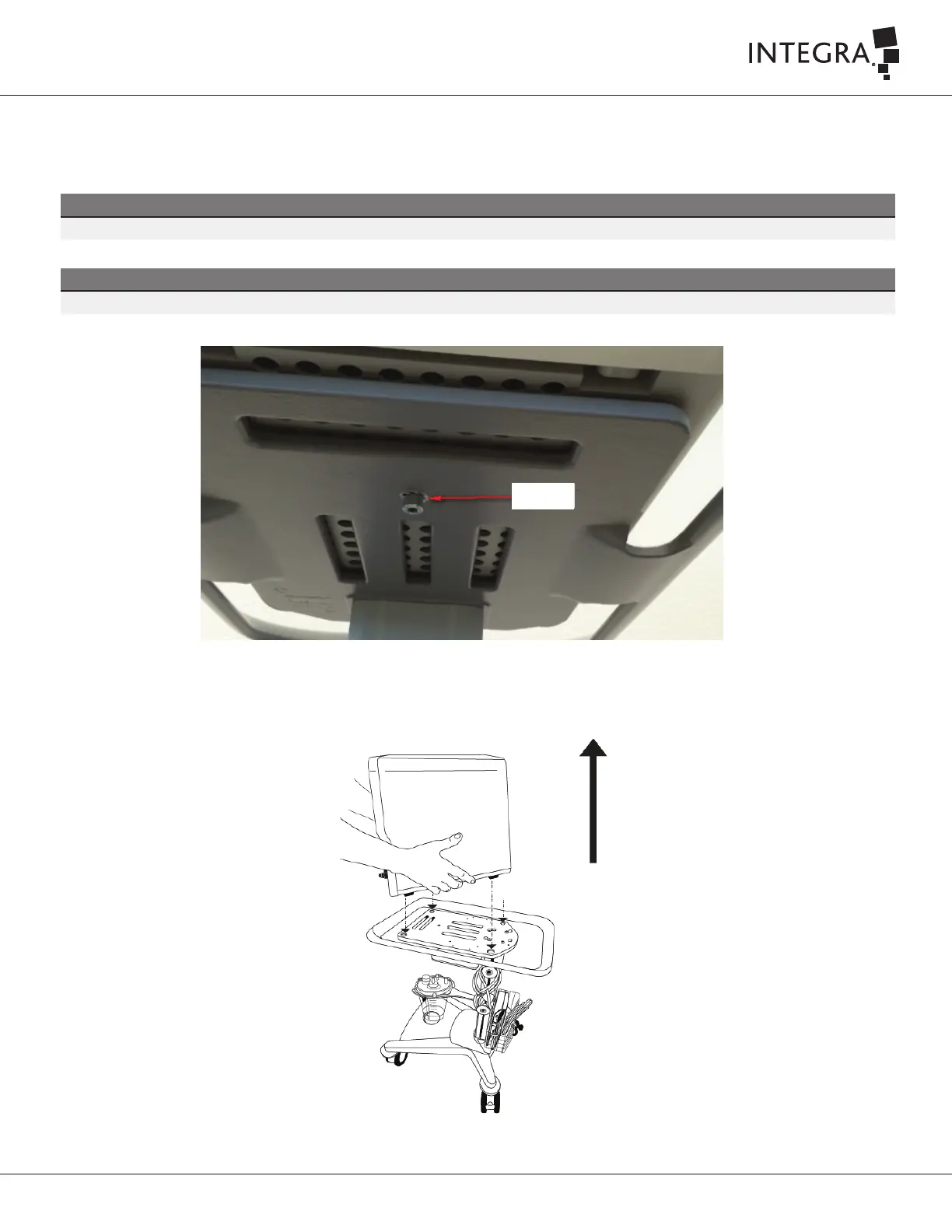

9.4 Disassembling CUSA® Clarity Console from Cart
Under the top of the cart, remove the M8 X 60 MM SOCKET HEAD CAP SCREW Ref. S72905320 and M8 EXTERNAL TOOTH LOCK WASHER
Ref. S72905321 using HEX L-KEY, 6 MM Ref. S72905103 provided with the Cart as shown in Figure 9 3.
CAUTION
The CUSA Clarity console weight is 29.5 kg (65 lbs). Make sure only individuals who are capable of safely liing 29.5kg (65 lbs.) li the console.
CAUTION
Lock all four casters before taking of the console from the cart.
Figure 9-3
Li the CUSA Clarity console off the Cart as shown in Figure 9 4.
Figure 9-4
Unscrew
