Integra CUSA Clarity System - Assembling CUSA Clarity Console on Cart

This document contains proprietary and confidential information of Integra LifeSciences Corporation. Integra’s confidential information may not be used, disclosed or reproduced without the prior wrien consent of Integra LifeSciences Corporation.
CUSA® Clarity System Service and Maintenance Manual Page 76 of 117 0645403-2-EN
CAUTION
The CUSA Clarity console weight is 29.5 kg (65 lbs). Make sure you can handle this weight.
CAUTION
Lock all four casters before taking of the console from the cart.

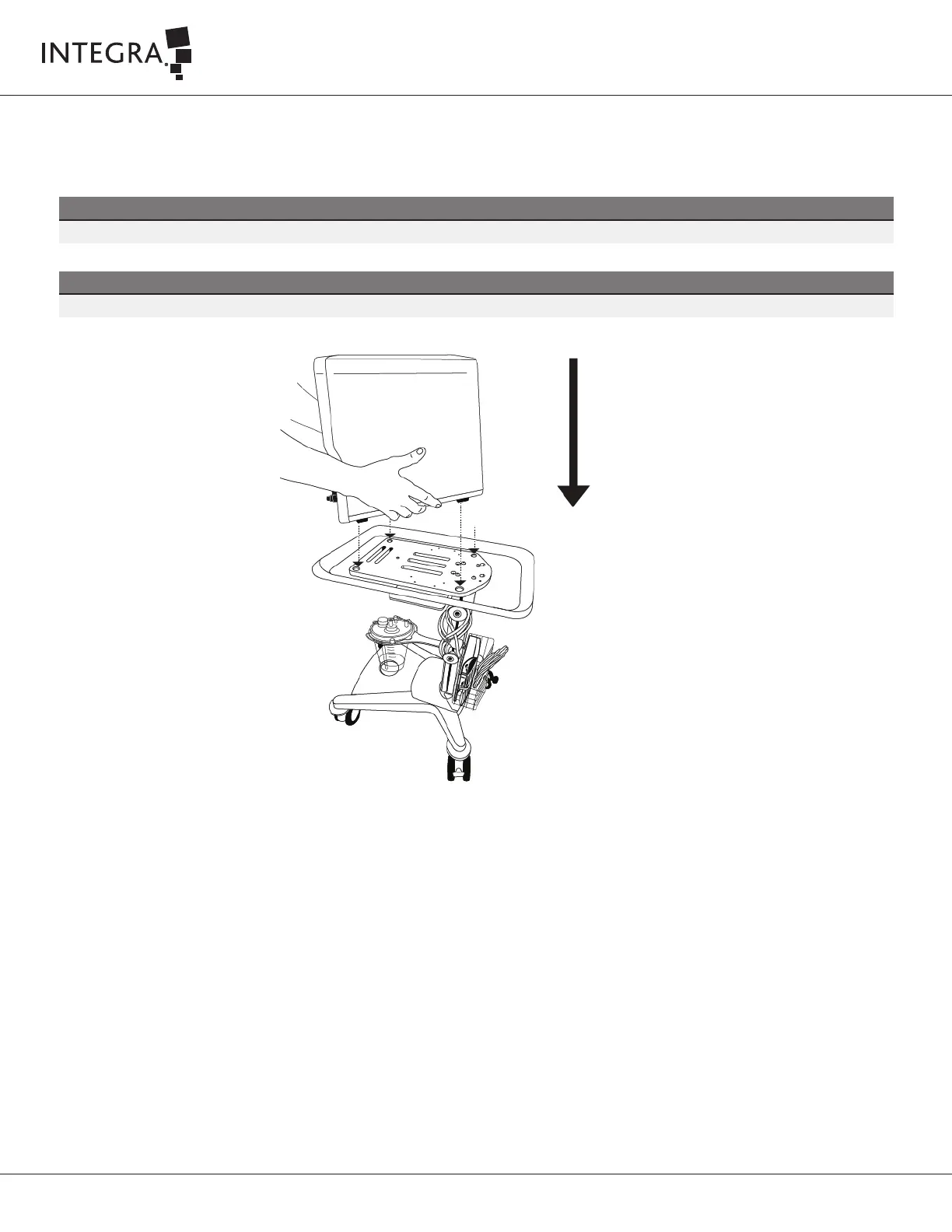

Figure 9-5
Refit the M8 X 60 MM SOCKET HEAD CAP SCREW Ref. S72905320 and M8 EXTERNAL TOOTH LOCK WASHER Ref. S72905321 using HEX L-KEY, 6 MM
Ref. S72905103 provided with the Cart as shown in Figure 9-6.
9.5 Assembling CUSA Clarity Console on Cart
Place the console on the cart by aligning the four (4) feet on the boom of the console with the four (4) indentations on the cart as shown in Figure 9 5.
