CUSA® Clarity System Service and Maintenance Manual Page 74 of 117 0645403-2-EN

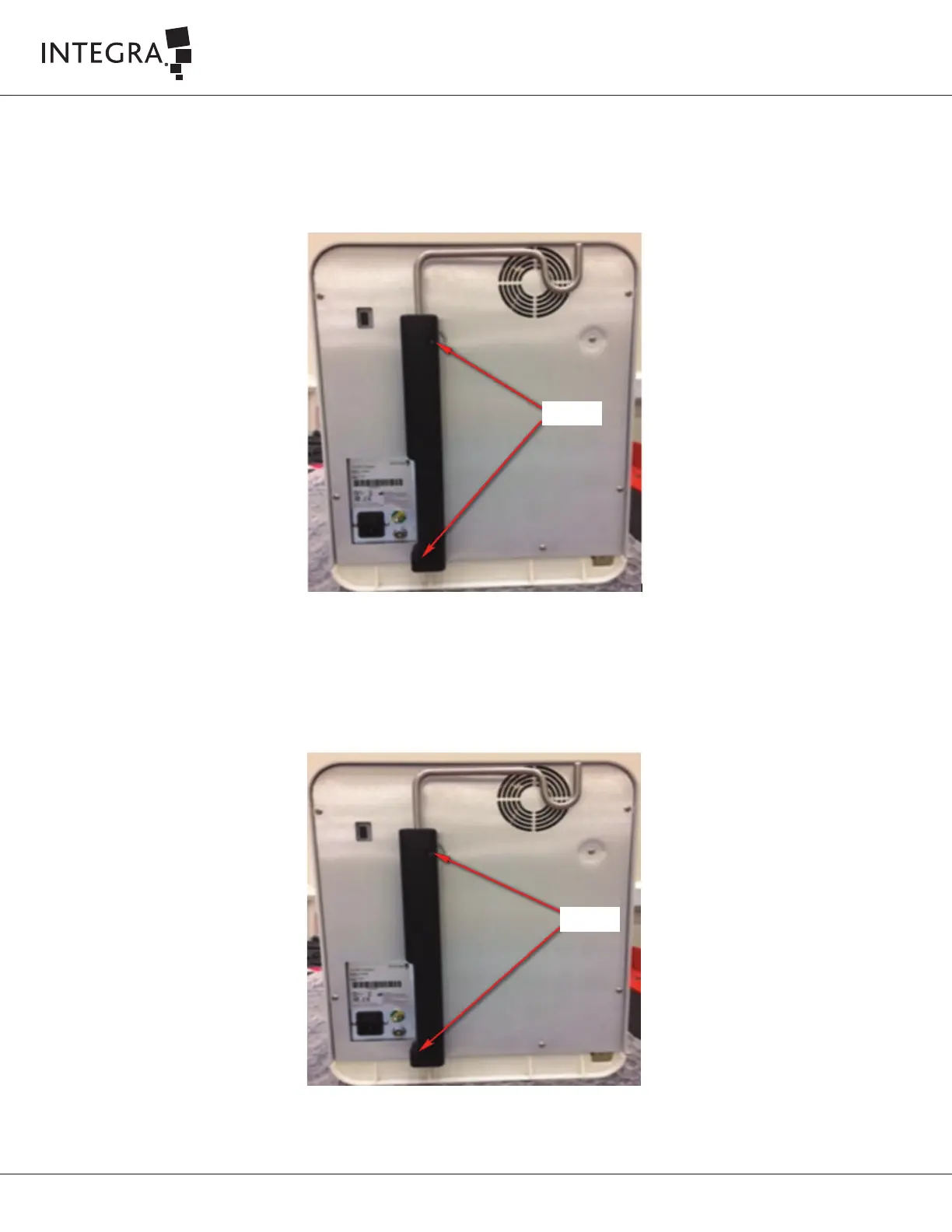

Figure 9-1
Installation
Position the IV pole as shown in Figure 9 2; refit the 2 x M5 x 35 Ref. 72904930 screws using 3 mm Allen bit.
Ensure the IV pole is sliding up and down.
Figure 9-2
9.3 IV Pole Replacement Ref. S30905284
Removal
Unscrew the 2 x M5 x 35 Ref. 72904930 screws as shown in Figure 9-1 using 3 mm Allen bit. The IV pole will come apart.
Unscrew
Screw
