1. Place the canister into the canister holder.
2. Open the cartridge door, insert the cartridge, and slide the cartridge down.
Note
Do not insert the handpiece cable into the clip at the base of the handpiece.
Note
Properly set and connect the handpiece and contamination guard. See the contamination guard instructions for use for information.
5.5 Aaching the Handpiece

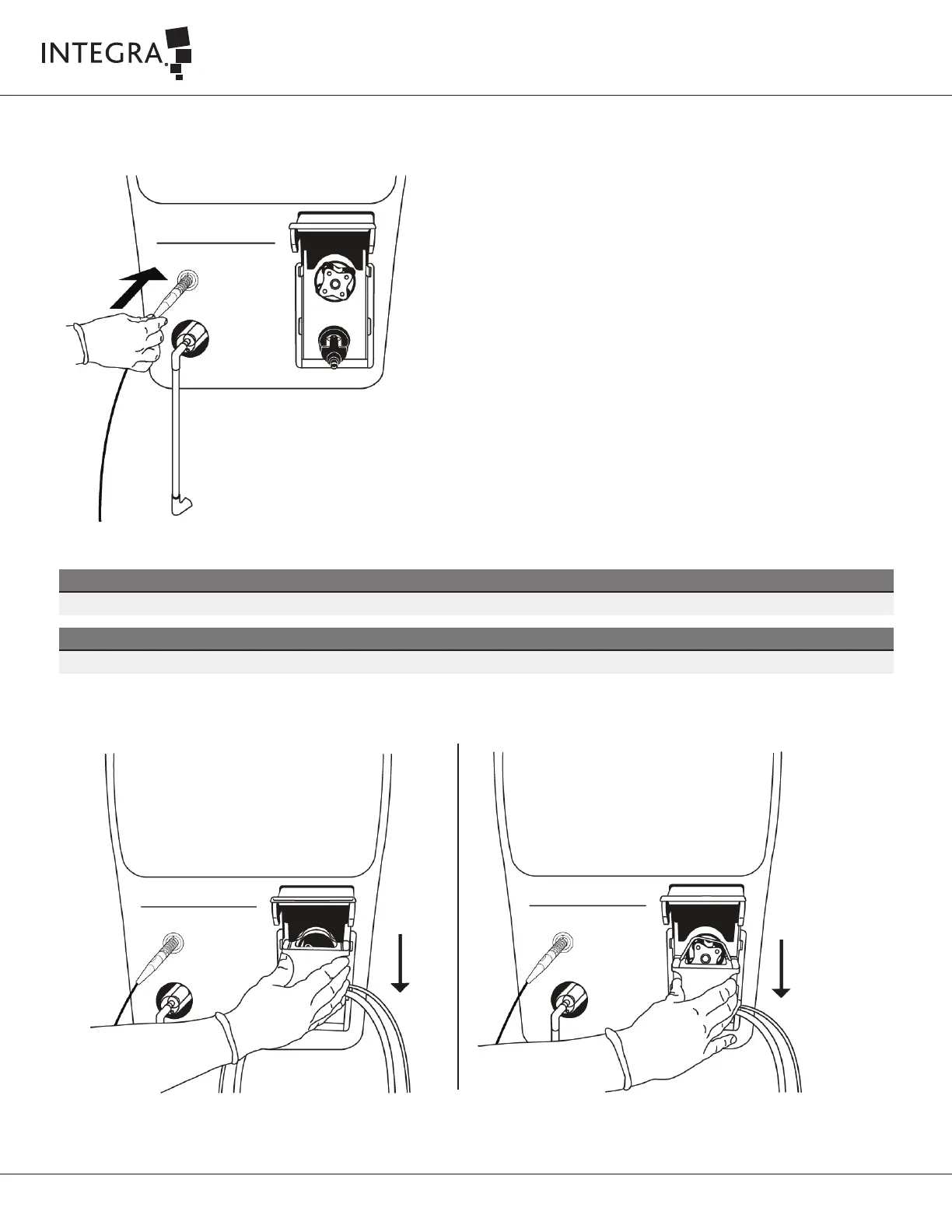

Pass out the handpiece cable connector from the sterile environment, align the red dot on the handpiece cable connector with the red dot on the
handpiece port on the front of the console, and plug in the handpiece cable.
5.6 Connecting the Tubing Set
