CUSA® Clarity System Service and Maintenance Manual Page 81 of 117 0645403-2-EN

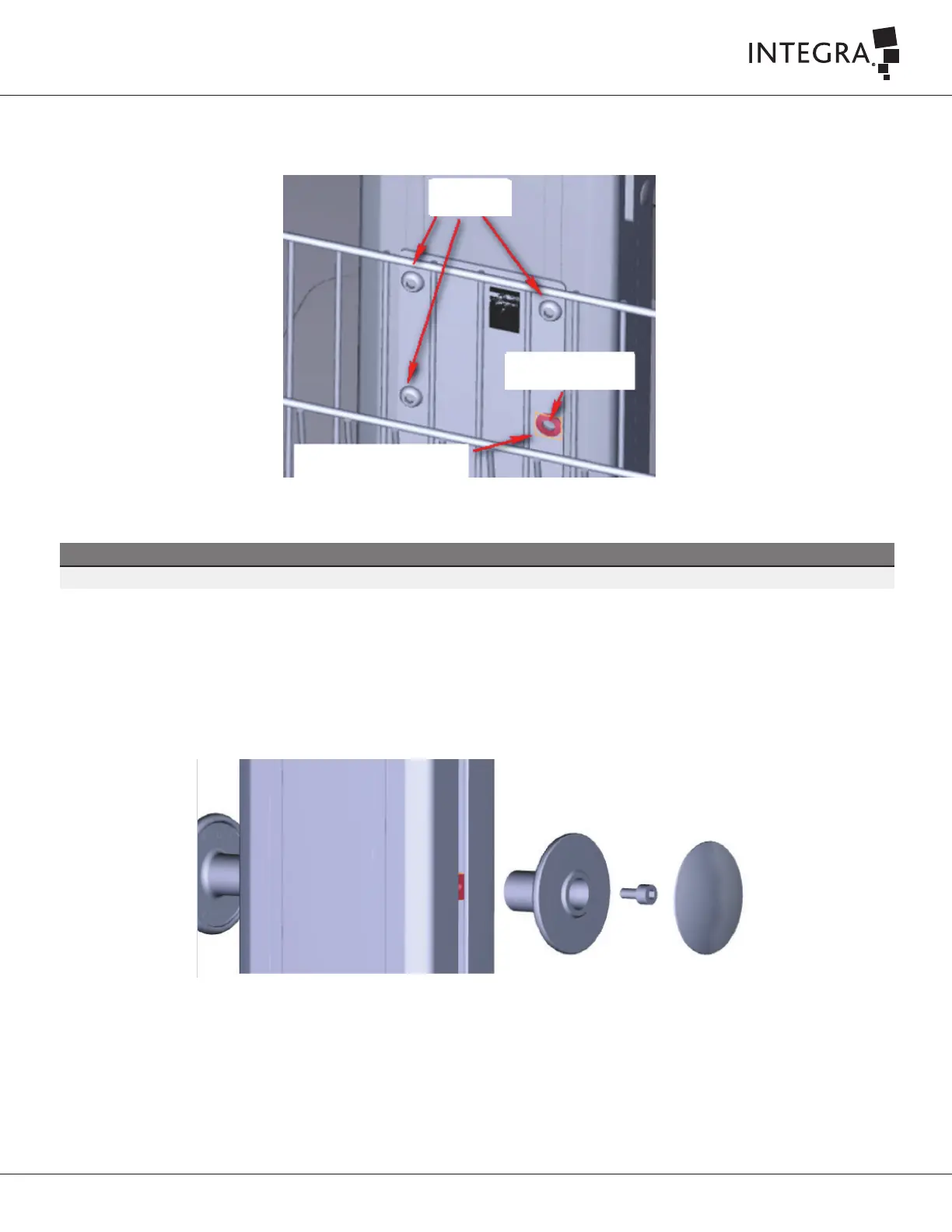

Refit the 3 x SCREW, BUTTON HEAD CAP, M6X10 MM Ref. S72905364, the SCREW, BUTTON HEAD CAP, M6X12 MM Ref. S72905365 and the WASHER,
LOCK, M6 Ref. S72905368 as shown in Figure 9 15.
Figure 9-15
9.9 Cart Cable Winding Peg Replacement Ref. S72905054
Removal
Remove the COVER, WINDING PEG, CART, PHOENIX Ref. S72905366 using a sharped blade and unscrew the SCREW, SOCKET HEAD CAP, M6X12 MM
Ref. S72905369 as shown in Figure 9-16.
Figure 9-16
NOTE
Cart Foot Switch Basket Replacement (Ref. S72905053) includes Screws and Washer.
Screw
MKX
Lock Washer
