CUSA® Clarity System Service and Maintenance Manual Page 82 of 117 0645403-2-EN

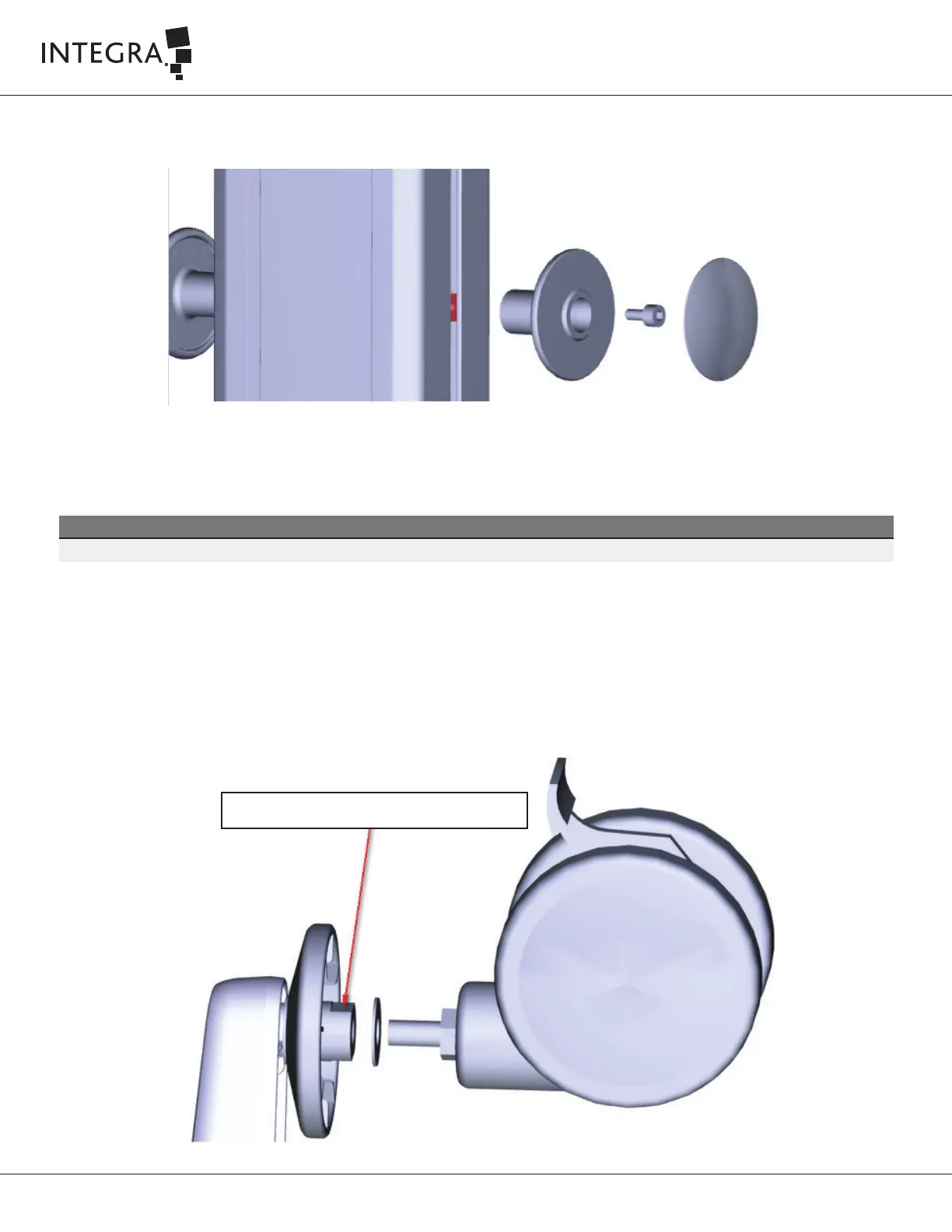

Figure 9-17
Refit the SCREW, SOCKET HEAD CAP, M6X12 MM Ref. S72905369 as shown in Figure 9-17.
Refit the COVER, WINDING PEG, CART, PHOENIX Ref. S72905366 as shown in Figure 9-17.
NOTE
Cable Winding Peg Replacement (Ref. S72905054) includes 2 pair of Winding Peg with Screws.
9.10 Cart Caster Replacement Ref. S72905055
Removal
Remove CUSA Clarity Console from the Cart according to section 9-4 Disassembling CUSA Clarity Console from Cart.
• Lay down the cart on the floor. With 21 mm spanner, unscrew the caster Ref. S72905055 as shown in Figure 9-18. The WASHER, FLAT, M12
Ref. S72905383 comes out with the caster. Use a 22 mm spanner to maintain the adapter.
Figure 9-18
Installation
Align the Cart Cable Winding Peg Ref. S72905054 holes with the M6 SPRING NUT Ref. S72905363, as shown in Figure 9-17.
Use a 22 mm spanner to maintain the adapter
