CUSA® Clarity System Service and Maintenance Manual Page 83 of 117 0645403-2-EN
9.11 Cart Caster Bumper Replacement Ref. S72905056
Removal
Remove CUSA Clarity Console from the Cart according to section 9-4 Disassembling CUSA Clarity Console from Cart.
• With 22 mm spanner, unscrew the CASTER SPACER, CART, CUSA CLARITY Ref. 72905437 as shown in Figure 9-19. The M12 FLAT WASHERS
Ref S72905383, the CASTER BUMPER, PHOENIX Ref. 72905436, the WASHER, CASTER BUMPER, CART, CUSA CLARITY Ref. 72905438 and
the CASTER SPACER, CART, CUSA CLARITY Ref. 72905437 come out with the Caster.
Installation
Engage the M12 FLAT WASHER Ref S72905383 on the Caster sha. With 21 mm spanner, refit the Caster Ref. S72905055 as shown in Figure 9-18.

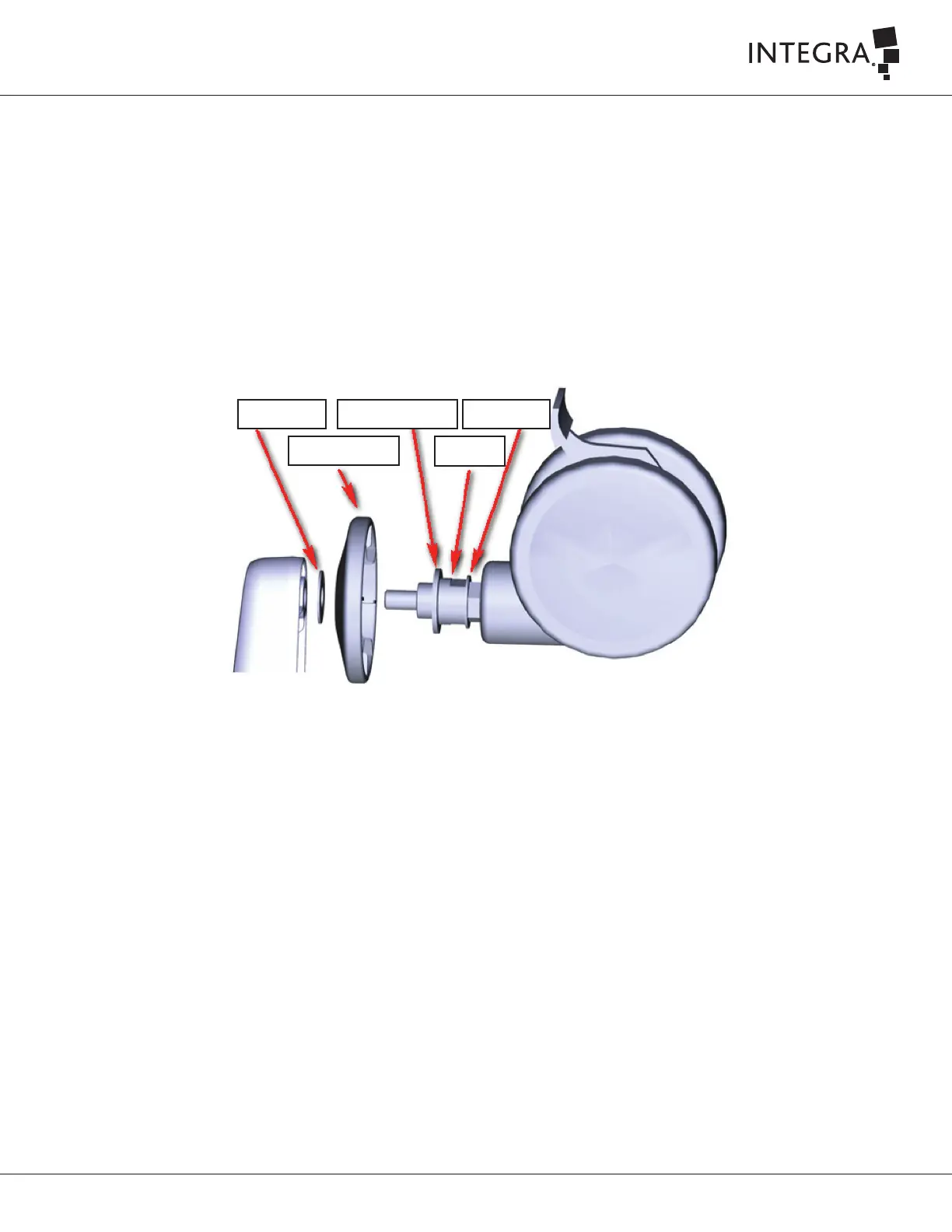

Figure 9-19
Installation
Engage the WASHER, CASTER BUMPER, CART, CUSA CLARITY Ref. 72905438, the CASTER BUMPER, PHOENIX Ref. 72905436 and the M12 FLAT WASH-
ER Ref S72905383 on the CASTER SPACER, CART, CUSA CLARITY Ref. 72905437 sha and refit the assembly on the chassis as shown in Figure 9-19.
9.12 Cart Weight Cover Replacement Ref. S72905051
Removal
Remove CUSA Clarity Console from the Cart according to section 9.4 Disassembling CUSA Clarity Console from Cart.
• Lay down the cart on the floor.
M Washer M Washer
Caster Bumper
Spacer
Bumper Washer
