CUSA® Clarity System Service and Maintenance Manual Page 80 of 117 0645403-2-EN
9.8 Cart Foot Switch Basket Replacement Ref. S72905053
Removal
Unscrew and remove the 3 x SCREW, BUTTON HEAD CAP, M6X10 MM Ref. S72905364, the SCREW, BUTTON HEAD CAP, M6X12 MM Ref. S72905365 and
the SERRATED WASHER Ref. S72905368 as shown in Figure 9-13.

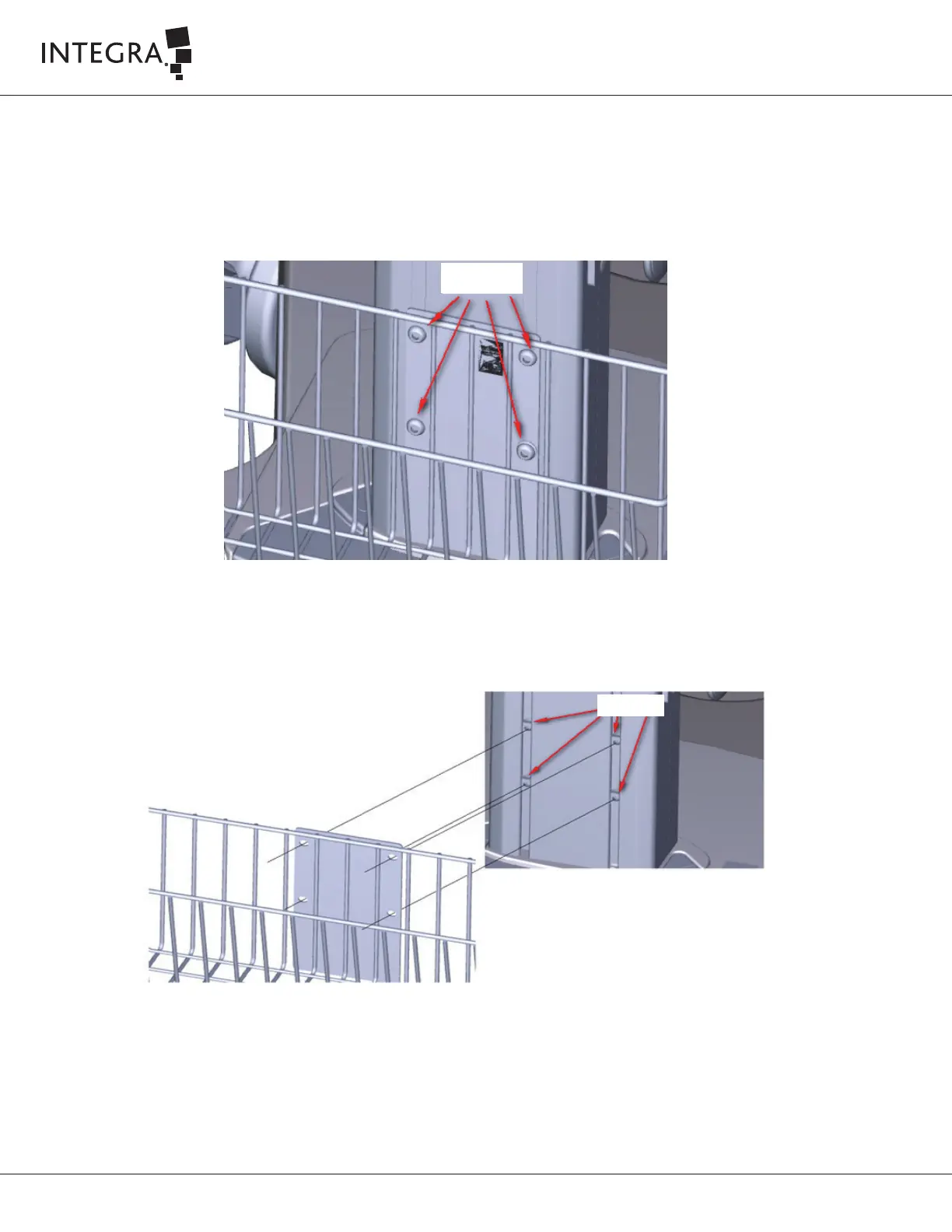

Figure 9-13
Installation
Align Foot Switch Basket Ref. S72905053 holes with the 6 x SPRING NUT, M6 Ref. S72905363, as shown in Figure 9-14.
Figure 9-14
Unscrew
M6 Nut
