Installation

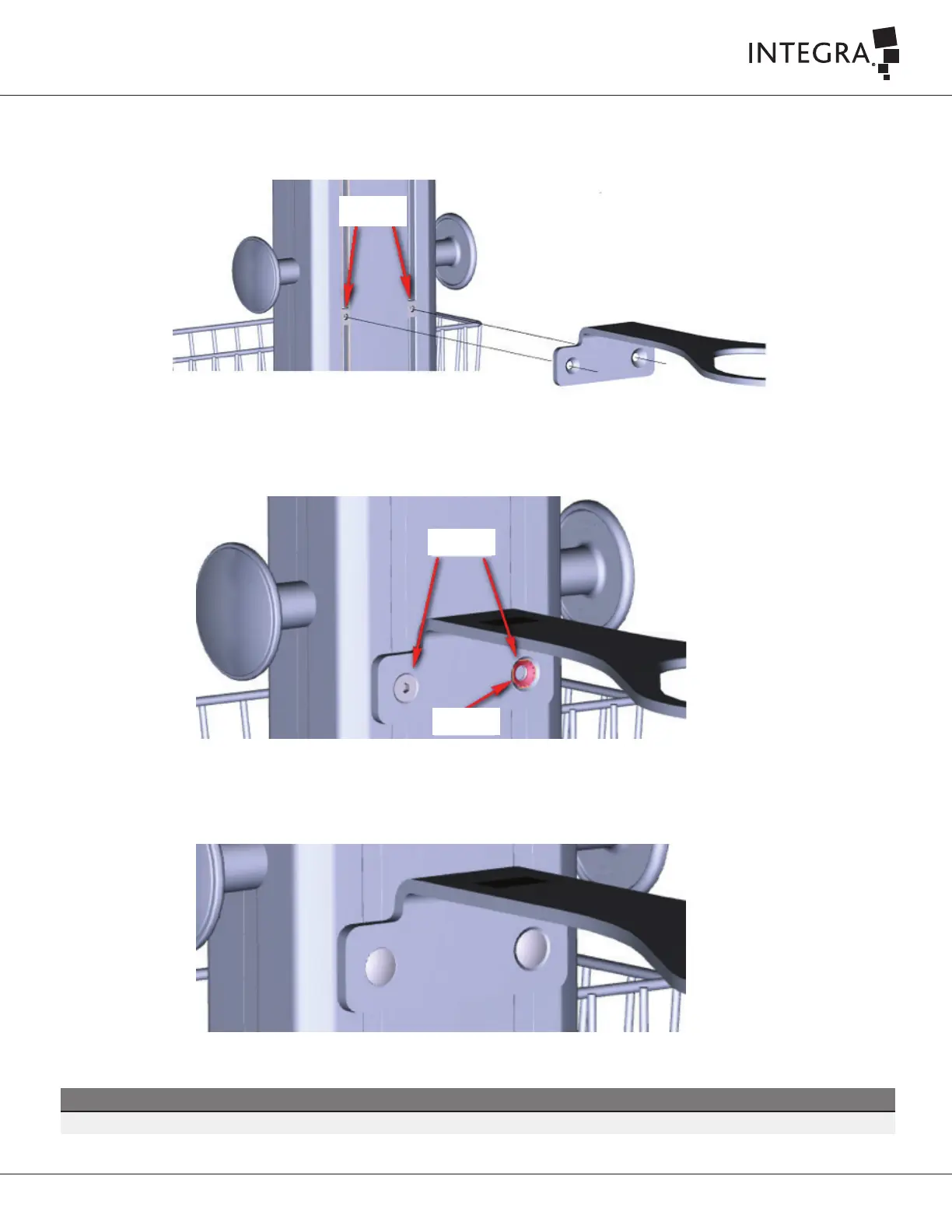

Align VACCUM CANISTER HOLDER Ref. S72905009 holes with the 2 x SPRING NUT, M6 Ref. S72905363, as shown in Figure 9-10
Figure 9-10
Refit the 2 x SCREW, FLAT-HEAD SOCKET CAP, M6X12 MM Ref. S72905360 and the WASHER, EXTERNAL TOOTH, M6 Ref. S72905361 as shown in
Figure 9-11.
Figure 9-11
Refit the 2 x SCREW CAP, GRAY, M5/M6 Ref. S72905362 on the 2 x SCREW, FLAT-HEAD SOCKET CAP, M6X12 MM Ref. S72905360 as shown in Figure 9 12.
Figure 9-12
NOTE
Cart Vacuum Canister Holder Replacement (Ref. S72905009) includes Screws and Washer.
Screw
M6 Nut
Washer
